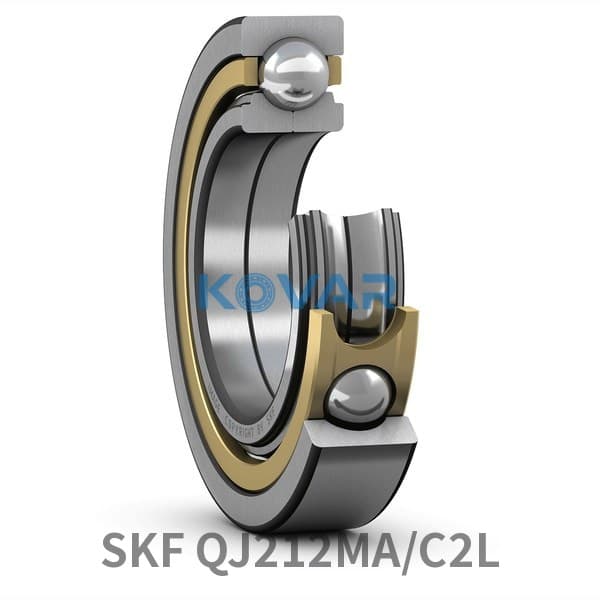

SKF QJ212MA/C2L Four-Point Contact Ball Bearing 60 × 110 × 22 mm

Four-Point Contact Ball Bearing

RFQ

Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)

In stockEstimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Four-Point Contact Ball Bearing
Dimensions: 60x110x22mm

Overview

SKF QJ212MA/C2L Four-Point Contact Ball Bearing is a compact angular contact design that can support axial load in both directions and a portion of radial load in a single bearing. It suits gearboxes, cranes, and rotary tables where axial space saving and shaft location are required.

A split inner ring or specially shaped raceway allows the balls to contact at four points. It can replace certain paired angular contact arrangements while reducing axial width.

Key features

Supports bidirectional axial load
Saves axial installation space
Separable design improves mountability
Suitable for locating bearing positions

Typical applications

Industrial gearboxes
Cranes and hoists
Rotary tables
Pump and compressor shaft supports

Selection guidance

Confirm axial load dominance, radial load ratio, speed, internal clearance, and the companion bearing arrangement.

Symbol	Value	Description
C	96.5 kN	Basic dynamic load rating
C0	93 kN	Basic static load rating
limiting_speed_rpm	10 000 r/min	Limiting speed
performance_class	SKF Explorer	SKF performance class

Symbol	Value	Description
d	60 mm	Bore diameter
D	110 mm	Outside diameter
B	22 mm	Width
α	35 °	Contact angle

Code	Description
접촉 유형	Four-point contact
열 개수	1
로케이팅 기능, 베어링 외륜	None
링 유형	Two-piece inner ring and one-piece outer ring
케이지	Machined brass
일치된 배열	No
유니버설 매칭 베어링	No
축방향 내부틈새	C2L
소재, 베어링	Bearing steel
코팅	None
씰링	None
윤활유	None
재윤활 기능	None
제품 순 중량	0.965 kg
eClass 코드	23-05-08-05
UNSPSC 코드	31171538

datasheet pdf download
