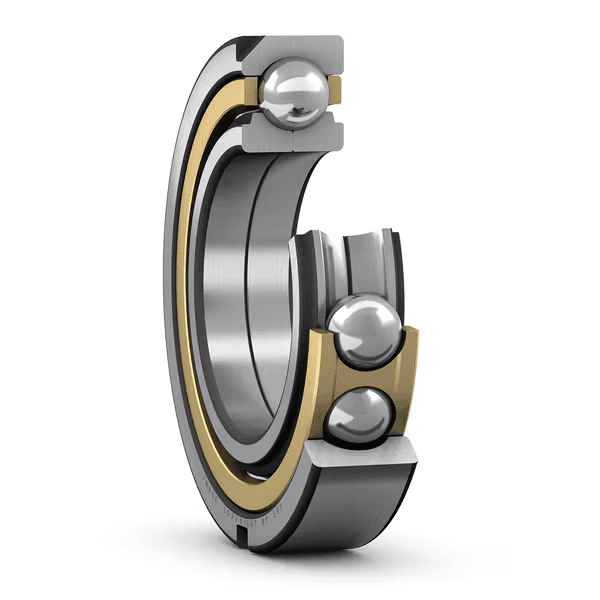

SKF QJ322 N2MA/C3 Four-Point Contact Ball Bearing 110 × 240 × 50 mm

Four-point contact ball bearing with locating slots

Four-Point Contact Ball Bearing

RFQ

Restocking soon · Inquire

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Four-Point Contact Ball Bearing
Dimensions: 110x240x50mm

Overview

Four-point contact ball bearing with locating slots

Four-point contact ball bearings with locating slots can accommodate high axial loads in both directions and small radial loads. They can operate at very high speeds and are more suitable than deep groove ball bearings for supporting large axial forces. The outer ring, with ball and cage assembly, can be mounted separately from the two inner ring halves. The locating slots can be used to prevent the outer ring from rotating.

Key features

High-speed capability
Accommodate high axial loads in both directions and small radial loads
Require considerably less axial space than double row angular contact ball bearings
The locating slots can be used to prevent the outer ring from rotating

Typical applications

Industrial gearboxes
Cranes and hoists
Rotary tables
Pump and compressor shaft supports

Selection guidance

Confirm axial load dominance, radial load ratio, speed, internal clearance, and the companion bearing arrangement.

Symbol	Value	Description
C	390 kN	Basic dynamic load rating
C0	480 kN	Basic static load rating
limiting_speed_rpm	4 800 r/min	Limiting speed
performance_class	SKF Explorer	SKF performance class

Symbol	Value	Description
d	110 mm	Bore diameter
D	240 mm	Outside diameter
B	50 mm	Width
α	35 °	Contact angle

High-speed performance
Accommodates high axial loads and small radial loads in both directions
Considerably less axial space required than a double-row angular contact ball bearing
Locating slot prevents outer ring rotation

Code	Description
접촉 유형	Four-point contact
열 개수	1
로케이팅 기능, 베어링 외륜	Locating slot
링 유형	Two-piece inner ring and one-piece outer ring
케이지	Machined brass
일치된 배열	No
유니버설 매칭 베어링	No
축방향 내부틈새	C3
소재, 베어링	Bearing steel
코팅	None
씰링	None
윤활유	None
재윤활 기능	None
제품 순 중량	11.7 kg
eClass 코드	23-05-08-05
UNSPSC 코드	31171538

datasheet pdf download
