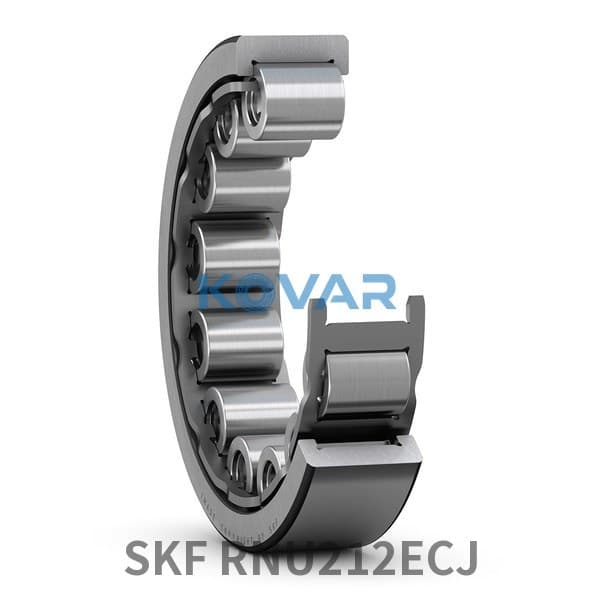

SKF RNU212ECJ Cylindrical Roller Bearing

Cylindrical Roller Bearing

RFQ

Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)

In stockEstimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Cylindrical Roller Bearing

Overview

Cylindrical roller bearing

Cylindrical roller bearings provide line contact between rollers and raceways, accommodating very high radial loads together with high-speed operation. Depending on the flange configuration (NU, NJ, N, NUP), they allow axial displacement or locate the shaft in one or both directions, and their separable design eases mounting and maintenance. They are widely used in gearboxes, electric motors and rolling-mill equipment for heavy-duty service.

Key features

Very high radial load capacity
High-speed capable with high rigidity
Separable design for easy mounting
Axial function selectable by flange type

Typical applications

Industrial electric motors
Gearboxes and reducers
Machine tool spindle support positions
Rolling mills, paper machines, and heavy machinery

Selection guidance

Choose the N, NU, NJ, or NUP design by load direction, axial locating requirement, cage material, internal clearance, and lubrication condition.

Symbol	Value	Description
C	108 kN	Basic dynamic load rating
C0	102 kN	Basic static load rating
reference_speed_rpm	6 700 r/min	Reference speed
limiting_speed_rpm	7 500 r/min	Limiting speed
performance_class	SKF Explorer	SKF performance class

Symbol	Value	Description
Fw	72 mm	롤러 아래 직경
D	110 mm	Outside diameter
B	22 mm	Width

Symbol	Value	Description
da	max. 77.65 mm	da
Da	max. 101 mm	Da
ra	max. 1.5 mm	ra

Code	Description
베어링 부품	Inner ring bearing
열 개수	1
로케이팅 기능, 베어링 외륜	None
보어 유형	Cylindrical
케이지	Sheet metal
플랜지 개수, 외부 링	2
루스 플랜지	None
공차 클래스	Normal
코팅	None
씰링	None
윤활유	None
재윤활 기능	None
제품 순 중량	0.623 kg
eClass 코드	23-05-09-01
UNSPSC 코드	31171505

datasheet pdf download
