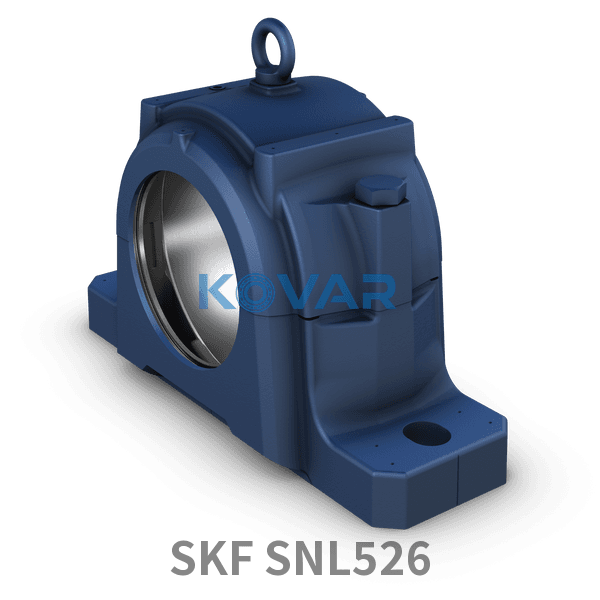

SKF SNL526 Pillow Block Housing Unit

Pillow (plummer) block unit

Pillow Block Housing Unit

RFQ

Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)

In stockEstimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Pillow Block Housing Unit

Overview

Pillow (plummer) block unit

Pillow (plummer) block units combine an insert ball bearing with a base-mounted housing, bolted horizontally to a flat support surface. Ready to mount, lubricated and sealed, they accommodate initial misalignment and are widely used in fans, conveyors and agricultural machinery.

Key features

Bolt horizontally to a support surface
Ready to mount, lubricated, sealed
Accommodate initial misalignment
Cast iron/steel/composite housings

Typical applications

Conveyor drive shafts
Fans and blowers
Agricultural and food machinery
Packaging and logistics handling equipment

Selection guidance

Verify shaft diameter, base bolt spacing, housing material, locking method, seal, and grease nipple specification.

Symbol	Value	Description
d	230 mm	베어링 시트의 직경
B	90 mm	베어링 시트의 너비
H	150 mm	중심 높이(필로우 블록)
J	380 mm	볼트 구멍 사이의 중심 거리
N	24 mm	부착 볼트 직경

Code	Description
하우징 유형	플러머/필로우 블록
하우징 구성	Two-piece
장착 배열	관통 축/축 엔드
패스너 볼트 구멍 개수	2
하우징 소재	주철
베어링 하우징 씰 유형	None
하우징 윤활 기능/가능성	Grease
제품 순 중량	34.6 kg
eClass 코드	23-05-17-01
UNSPSC 코드	31171519

datasheet pdf download
