| Symbol | Value | Description |
|---|---|---|
| C | 12.7 kN | Basic dynamic load rating |
| C0 | 6.55 kN | Basic static load rating |
| limiting_speed_rpm | 8 500 r/min | Limiting speed |
| note | 샤프트 공차 h6로 한계 속도 | Note |
+82 70-7954-6116
info@kovar.kr
Technical support: Mon–Fri 9 AM – 6 PM KST
SKF

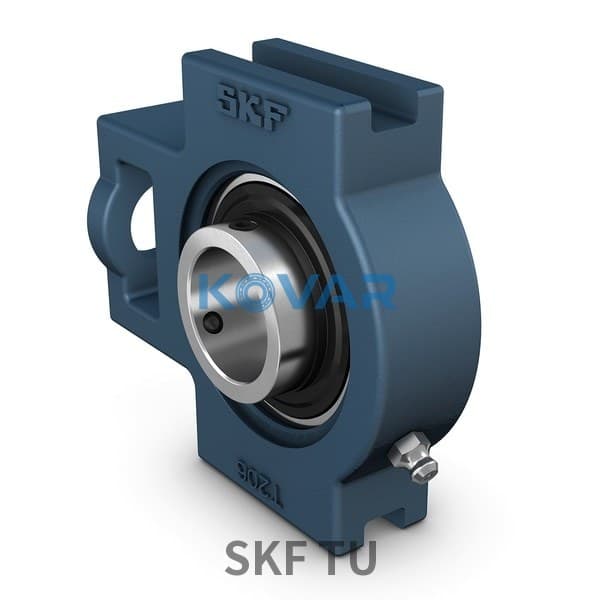

SKF TU Take-up Housing Unit
Take-up unit
Take-up Housing Unit
RFQ
Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
In stockEstimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
- Category
- Take-up Housing Unit
Overview
Take-up unit
Take-up units combine an insert ball bearing with a take-up (tension-adjusting) housing, moving the shaft within a take-up frame to adjust belt or chain tension. They are used at the ends of conveyors to maintain tension.
Key features
- Adjust belt/chain tension
- Move within a take-up frame
- Ready to mount, lubricated, sealed
- For conveyor ends
Typical applications
- Belt conveyors
- Chain conveyors
- Bucket elevators
- Packaging and logistics handling systems
Selection guidance
Check shaft diameter, housing slot dimensions, adjustment range, locking method, seal, and lubrication condition.
| Symbol | Value | Description |
|---|---|---|
| d | 20 mm | Shaft diameter |
| A | 34 mm | 하우징 전체 너비 |
| T | 31 mm | 총 베어링 너비 |
| Code | Description |
|---|---|
| 하우징 유형 | 테이크-업 |
| 고정 기능, 내륜 | Set screw |
| 보어 유형 | Cylindrical |
| 고무 시팅 링 | None |
| 하우징 소재 | 주철 |
| 소재, 베어링 | Bearing steel |
| 코팅 | None |
| 씰링, 베어링 | Seal and flinger on both sides |
| 씰링 유형 | Contact, standard |
| 씰링, 유닛 | 옵션 엔드 커버 |
| 윤활유 | Grease |
| 재윤활 구멍 | Included |
| 그리스 피팅 | Included |
| 제품 순 중량 | 0.852 kg |
| eClass 코드 | 23-05-08-02 |
| UNSPSC 코드 | 31171536 |
