| Symbol | Value | Description |
|---|---|---|
| C | 12.7 kN | Basic dynamic load rating |
| C0 | 6.7 kN | Basic static load rating |
| limiting_speed_rpm | 6 500 r/min | Limiting speed |
| note | 샤프트 공차 h6로 한계 속도 | Note |
+82 70-7954-6116
info@kovar.kr
Technical support: Mon–Fri 9 AM – 6 PM KST
SKF

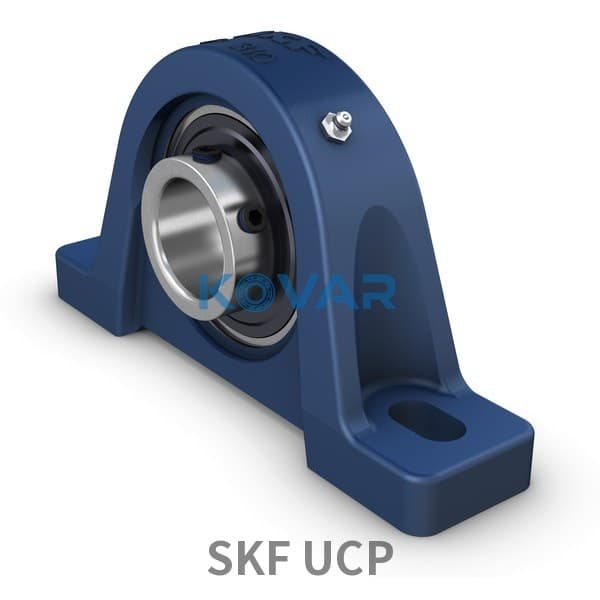

SKF UCP Pillow Block Housing Unit
Pillow (plummer) block unit
Pillow Block Housing Unit
RFQ
Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
In stockEstimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
- Category
- Pillow Block Housing Unit
Overview
Pillow (plummer) block unit
Pillow (plummer) block units combine an insert ball bearing with a base-mounted housing, bolted horizontally to a flat support surface. Ready to mount, lubricated and sealed, they accommodate initial misalignment and are widely used in fans, conveyors and agricultural machinery.
Key features
- Bolt horizontally to a support surface
- Ready to mount, lubricated, sealed
- Accommodate initial misalignment
- Cast iron/steel/composite housings
Typical applications
- Conveyor drive shafts
- Fans and blowers
- Agricultural and food machinery
- Packaging and logistics handling equipment
Selection guidance
Verify shaft diameter, base bolt spacing, housing material, locking method, seal, and grease nipple specification.
| Symbol | Value | Description |
|---|---|---|
| N | 10 mm | 부착 볼트 직경 |
| d | 20 mm | Shaft diameter |
| H | 33.3 mm | 중심 높이(필로우 블록) |
| A | 34 mm | 하우징 전체 너비 |
| J | 95 mm | 볼트 구멍 사이의 중심 거리 |
| T | 31 mm | 총 베어링 너비 |
| Code | Description |
|---|---|
| 하우징 유형 | Pillow block, normal base |
| 패스너 볼트 구멍 개수 | 2 |
| 체결 볼트 구멍 유형 | 플레인 |
| 고정 기능, 내륜 | Set screw |
| 보어 유형 | Cylindrical |
| 고무 시팅 링 | None |
| 하우징 소재 | 주철 |
| 소재, 베어링 | Bearing steel |
| 코팅 | None |
| 씰링, 베어링 | Seal and flinger on both sides |
| 씰링 유형 | Contact, standard |
| 씰링, 유닛 | None |
| 윤활유 | Grease |
| 재윤활 구멍 | Included |
| 그리스 피팅 | Included |
| 제품 순 중량 | 0.6 kg |
| eClass 코드 | 23-05-16-02 |
| UNSPSC 코드 | 31171536 |
