| Symbol | Value | Description |
|---|---|---|
| C | 32.6 kN | Basic dynamic load rating |
| C0 | 20 kN | Basic static load rating |
| limiting_speed_rpm | 650 r/min | Limiting speed |
+82 70-7954-6116
info@kovar.kr
Technical support: Mon–Fri 9 AM – 6 PM KST
SKF

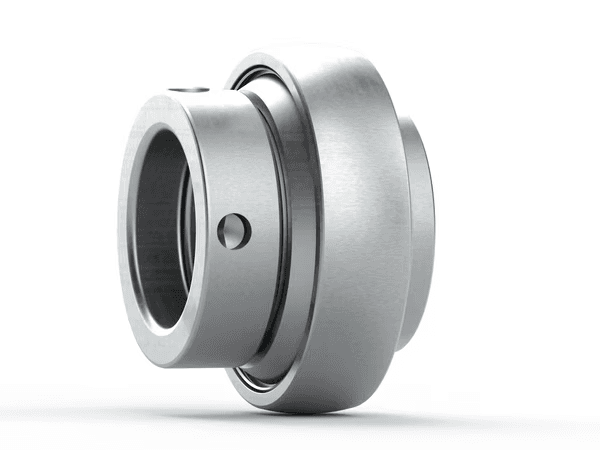

SKF XGGE40 KTTB Radial Insert Ball Bearing 40 × 80 × 56.3 mm
Insert bearing with an eccentric locking collar and extended inner ring, for agricultural applications
Radial Insert Ball Bearing
RFQ
Restocking soon · Inquire
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
- Category
- Radial Insert Ball Bearing
- Dimensions
- 40x80x56.3mm
Overview
Insert bearing with an eccentric locking collar and extended inner ring, for agricultural applications
Insert bearings are based on sealed deep groove ball bearings. This variant is designed for use in agricultural applications. It has an inner ring extended on both sides, with an eccentric locking collar, enabling quick and easy mounting onto the shaft. Locking with an eccentric collar is suitable for applications where the direction of rotation is constant.
Key features
- Quick and easy to mount onto the shaft
- Long service life
- Reduce noise and vibration levels
Typical applications
- Conveyor rollers
- Agricultural and food machinery
- Fans and blowers
- Packaging and handling equipment
Selection guidance
Check locking method, housing compatibility, seal design, lubrication, contamination level, and load condition.
| Symbol | Value | Description |
|---|---|---|
| d | 40 mm | Shaft diameter |
| d | 40 mm | Bore diameter |
| D | 80 mm | Outside diameter |
| T | 56.3 mm | Total width |
| B | 42.8 mm | Inner ring width |
| C | 22 mm | Outer ring width |
- Quick and easy mounting on the shaft
- Accommodates static initial misalignment
- Long service life
- Reduced noise and vibration levels
| Code | Description |
|---|---|
| 고정 기능, 내륜 | Eccentric locking collar |
| 보어 유형 | Cylindrical |
| 구름 요소 | Ball |
| 외륜 유형 | 구형 |
| 고무 시팅 링 | None |
| 소재, 베어링 | Bearing steel |
| 코팅 | Zinc-plated ring |
| 씰링 | Seal on both sides |
| 씰링 유형 | Contact, agricultural triple lip |
| 윤활유 | Grease |
| 재윤활 기능 | Included |
| 제품 순 중량 | 0.75 kg |
