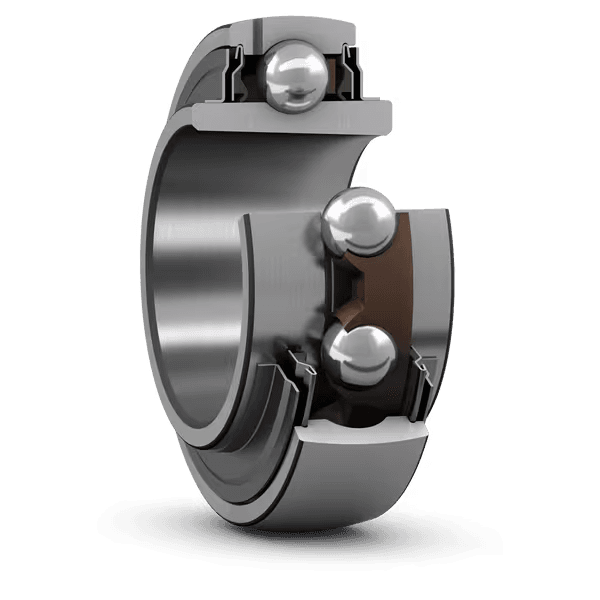

SKF YSA 209-2FK Radial Insert Ball Bearing 40 × 85 × 35 mm

Insert bearing with tapered bore and adapter sleeve locking

Radial Insert Ball Bearing

RFQ

Restocking soon · Inquire

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Radial Insert Ball Bearing
Dimensions: 40x85x35mm

Overview

Insert bearing with tapered bore and adapter sleeve locking

Insert bearings are based on sealed deep groove ball bearings. This variant, with a tapered bore, is suitable for applications with both constant and alternating directions of rotation. It is locked with an adapter sleeve, enabling quick and easy mounting onto the shaft. Adapter sleeve needs to be ordered separately.

Key features

Quick and easy to mount onto the shaft
Long service life
Reduce noise and vibration levels

Typical applications

Conveyor rollers
Agricultural and food machinery
Fans and blowers
Packaging and handling equipment

Selection guidance

Check locking method, housing compatibility, seal design, lubrication, contamination level, and load condition.

Symbol	Value	Description
C	33.2 kN	Basic dynamic load rating
C0	21.6 kN	Basic static load rating
limiting_speed_rpm	4 300 r/min	Limiting speed

Symbol	Value	Description
d	40 mm	Shaft diameter
d	45 mm	Bore diameter
D	85 mm	Outside diameter
T	35 mm	Total width
B	35 mm	Inner ring width
C	22 mm	Outer ring width

Quick and easy mounting on the shaft
Accommodates static initial misalignment
Long service life
Reduced noise and vibration levels

Code	Description
고정 기능, 내륜	Adapter sleeve
보어 유형	Tapered
구름 요소	Ball
외륜 유형	구형
내륜 연장	Symmetrically on both sides
케이지	Non-metallic
고무 시팅 링	None
소재, 베어링	Bearing steel
코팅	None
씰링	Seal and flinger on both sides
씰링 유형	Contact, standard
윤활유	Grease
재윤활 기능	Included
제품 순 중량	0.522 kg
eClass 코드	23-05-08-02
UNSPSC 코드	31171536
