| 記号 | 値 | 説明 |
|---|---|---|
| ≈m | 356.5 kg | 質量 |
| Cr | 4.800.000 N | 基本動定格荷重（ラジアル） |
| C0r | 12.100.000 N | 基本静定格荷重（ラジアル） |
| Cur | 740.000 N | 疲労限界荷重（ラジアル） |
| nG | 670 1/min | 許容回転数 |
| nϑr | 350 1/min | 基準回転数 |
+82 70-7954-6116
info@kovar.kr
技術サポート対応時間：月〜金 9:00〜18:00（韓国時間）
FAG
FAG 239/710K-MB-C3 Spherical Roller Bearings 自動調心ころ軸受 710 × 950 × 180 mm
Spherical Roller Bearing
見積依頼
入荷予定・お問い合わせ
表示価格はEX-WORKS（インコタームズ2020）韓国・ソウル渡しです。輸送費・関税・保険は買主負担となります。
- Category
- 自動調心ころ軸受
- Bore
- K
- Outer Ø
- 950 mm mm
- Width
- 180 mm mm
Overview
FAG 239/710K-MB-C3 Spherical Roller Bearing is a heavy-duty bearing that tolerates shaft misalignment and deflection through spherical raceways and barrel-shaped rollers. It supports high radial load and axial load in both directions, making it suitable for mining, steel, paper, wind, and other shock-prone equipment.
The outer ring has a spherical raceway, while the inner ring carries two rows of rollers guided by a cage. This self-aligning structure compensates for minor shaft and housing misalignment during operation.
Key features
- Self-aligning capability for misalignment and shaft deflection
- High radial and bidirectional axial load capacity
- Stable operation under shock and vibration
- Long-life design for heavy-duty equipment
Typical applications
- Conveyor pulleys
- Crushers, screens, and mining equipment
- Steel and paper machinery
- Wind turbines and heavy machinery
Selection guidance
Review load, speed, misalignment, lubrication method, bore type, and adapter sleeve requirements before selection.

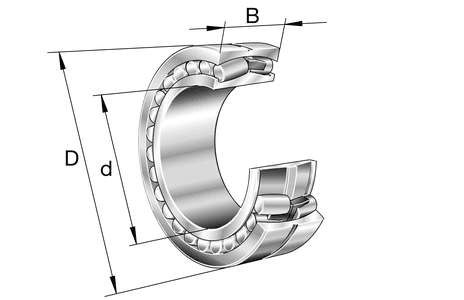

| 記号 | 値 | 説明 |
|---|---|---|
| d | 710 mm | 内径 |
| D | 950 mm | 外径 |
| B | 180 mm | 幅 |
| r1, 2 min | 6 mm | 最小面取り寸法 |
| 記号 | 値 | 説明 |
|---|---|---|
| da min | 733 mm | Min. shoulder diameter for mounting, inner ring |
| Da max | 927 mm | Max. shoulder diameter for mounting, housing |
| ra max | 5 mm | Max. fillet radius |
| da max | 770 mm | Max. shoulder diameter for mounting, inner ring |
| 記号 | 値 | 説明 |
|---|---|---|
| Tmin | -30 °C | 最低使用温度 |
| Tmax | 200 °C | 最高使用温度 |
| 記号 | 値 | 説明 |
|---|---|---|
| e | 0,18 | Limit value Fa/Fr |
| Y | 3,85 | 動アキシアル荷重係数 |
| コード | 説明 |
|---|---|
| C3 | Radial clearance group |
| K | Bore type |
| MB | Cage |
