| 符號 | 數值 | 說明 |
|---|---|---|
| ≈m | 22.518 kg | 重量 |
| Cr | 1.150.000 N | 基本額定動負荷（徑向） |
| C0r | 1.400.000 N | 基本額定靜負荷（徑向） |
| Cur | 129.000 N | 疲勞極限負荷（徑向） |
| nG | 2.650 1/min | 極限轉速 |
| nϑr | 1.900 1/min | 參考轉速 |
+82 70-7954-6116
info@kovar.kr
技術支援時間：週一至週五 9:00–18:00（韓國時間）
FAG

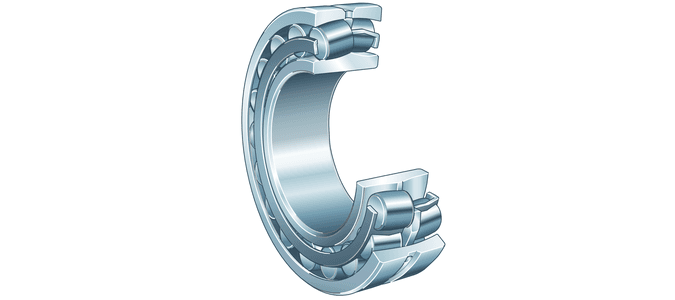

FAG 22232-E1-XL-C3 Spherical Roller Bearings 調心滾子軸承 160 × 290 × 80 mm
Spherical Roller Bearing
NT$24,641.89起
未稅fag:22232-E1-XL-C3NT$24,641.89
| 規格 | 價格 | 數量 |
|---|---|---|
| fag:22232-E1-XL-C3 | NT$24,641.89 |
有庫存預計配送日期：2026.06.15（韓國庫存）
顯示價格為 EX-WORKS（國貿條規 2020）韓國首爾。運費、關稅及保險由買方承擔。
- Category
- 調心滾子軸承
- Bore
- 160 mm mm
- Outer Ø
- 290 mm mm
- Width
- 80 mm mm
Overview
FAG 22232-E1-XL-C3 Spherical Roller Bearing is a heavy-duty bearing that tolerates shaft misalignment and deflection through spherical raceways and barrel-shaped rollers. It supports high radial load and axial load in both directions, making it suitable for mining, steel, paper, wind, and other shock-prone equipment.
The outer ring has a spherical raceway, while the inner ring carries two rows of rollers guided by a cage. This self-aligning structure compensates for minor shaft and housing misalignment during operation.
Key features
- Self-aligning capability for misalignment and shaft deflection
- High radial and bidirectional axial load capacity
- Stable operation under shock and vibration
- Long-life design for heavy-duty equipment
Typical applications
- Conveyor pulleys
- Crushers, screens, and mining equipment
- Steel and paper machinery
- Wind turbines and heavy machinery
Selection guidance
Review load, speed, misalignment, lubrication method, bore type, and adapter sleeve requirements before selection.
| 符號 | 數值 | 說明 |
|---|---|---|
| d | 160 mm | 內徑 |
| D | 290 mm | 外徑 |
| B | 80 mm | 寬度 |
| r1, 2 min | 3 mm | 最小倒角尺寸 |
| F | 190,9 mm | Raceway diameter of inner ring |
| 符號 | 數值 | 說明 |
|---|---|---|
| da min | 174 mm | Min. shoulder diameter for mounting, inner ring |
| Da max | 276 mm | Max. shoulder diameter for mounting, housing |
| ra max | 2,5 mm | Max. fillet radius |
| 符號 | 數值 | 說明 |
|---|---|---|
| Tmin | -30 °C | 最低工作溫度 |
| Tmax | 200 °C | 最高工作溫度 |
| 符號 | 數值 | 說明 |
|---|---|---|
| e | 0,26 | Limit value Fa/Fr |
| Y | 2,64 | 動軸向負荷係數 |
| 代碼 | 說明 |
|---|---|
| E1 | Product variant code |
| Z | Bore type |
| JPA | Cage |
| C3 (Group 3) | Radial clearance group |
