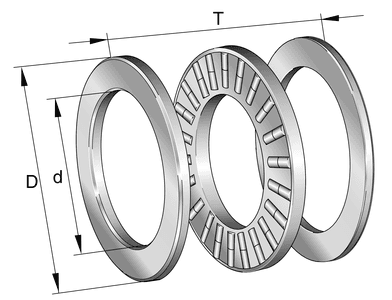

| 符號 | 數值 | 說明 |
|---|---|---|
| d | 100 mm | 內徑 |
| D | 170 mm | 外徑 |
| T | 42 mm | 高度 |
| Ca | 380.000 N | 基本額定動負荷（軸向） |
| C0a | 1.400.000 N | 基本額定靜負荷（軸向） |
| Cua | 125.000 N | 疲勞極限負荷（軸向） |
| nG | 2.130 1/min | 極限轉速 |
| nϑr | 910 1/min | 參考轉速 |
| ≈m | 4,29 kg | 重量 |
+82 70-7954-6116
info@kovar.kr
技術支援時間：週一至週五 9:00–18:00（韓國時間）
INA
INA 89320-M 推力圓柱滾子軸承 100 × 170 × 42 mm
Cylindrical Roller Bearings
Axial Cylindrical Roller Bearing
NT$12,616.07起
未稅ina:89320-MNT$12,616.07
| 規格 | 價格 | 數量 |
|---|---|---|
| ina:89320-M | NT$12,616.07 |
有庫存預計配送日期：2026.06.16（韓國庫存）
顯示價格為 EX-WORKS（國貿條規 2020）韓國首爾。運費、關稅及保險由買方承擔。
- Category
- 推力圓柱滾子軸承
- Dimensions
- 100x170x42mm
Overview
INA 89320-M Axial Cylindrical Roller Bearing supports large one-direction axial loads with high rigidity. It is suitable for gearboxes, extruders, presses, and machine tool tables where high thrust capacity is needed in a short axial space.
The bearing is assembled from cylindrical roller and cage assemblies, shaft washers, and housing washers. Its separable structure simplifies mounting, while raceway hardness and finish are important if adjacent components are used as raceways.
Key features
- High one-direction axial load capacity
- High axial rigidity
- Separable design for easy mounting
- Compact axial arrangement
Typical applications
- Industrial gearboxes
- Extruders and presses
- Machine tool rotary tables
- Heavy-duty screw mechanisms
Selection guidance
Check axial load direction, washer configuration, raceway quality, minimum load, lubrication, and speed.
| 符號 | 數值 | 說明 |
|---|---|---|
| D1 | 103 mm | 座圈內徑 |
| d1 | 170 mm | 軸圈肋直徑 |
| rmin | 1,5 mm | 最小倒角尺寸 |
| Dc1 | 100 mm | Cage bore diameter |
| 項目 | 代碼 | 說明 |
|---|---|---|
| 保持架 | M | 黃銅保持架 |
| 符號 | 數值 | 說明 |
|---|---|---|
| da | 167 mm | 軸肩最小直徑 |
| Da | 107 mm | 外殼肩最大直徑 |
| ra | 1,5 mm | Recess radius |
| 符號 | 數值 | 說明 |
|---|---|---|
| Tmin | -20 °C | 最低工作溫度 |
| Tmax | 120 °C | 最高工作溫度 |
- 單向軸向負荷
- 脂潤滑
- 油潤滑
- 無密封
| 代碼 | 說明 |
|---|---|
| K89320-M | 軸向滾子和保持架組件 |
| GS89320 | 座圈 |
| WS89320 | 軸圈 |
