| 符號 | 數值 | 說明 |
|---|---|---|
| d | 17 mm | 內徑 |
| H2 | 81 mm | 法蘭高度 |
| U | 32,1 mm | 單元總高度 |
| Cr | 10.100 N | 基本額定動負荷（徑向） |
| C0r | 4.750 N | 基本額定靜負荷（徑向） |
| ≈m | 0,43 kg | 重量 |
+82 70-7954-6116
info@kovar.kr
技術支援時間：週一至週五 9:00–18:00（韓國時間）
INA

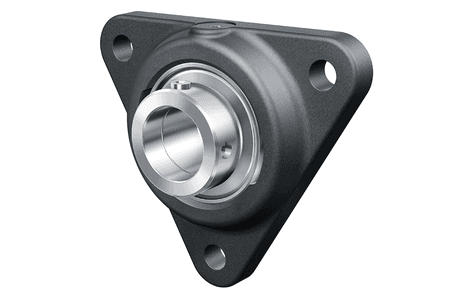

INA PCFTR17-XL 法蘭軸承座 17 × 28.4 × 81 mm
Flanged Housing Unit
NT$1,376.19起
未稅ina:PCFTR17-XLNT$1,376.19
| 規格 | 價格 | 數量 |
|---|---|---|
| ina:PCFTR17-XL | NT$1,376.19 |
有庫存預計配送日期：2026.06.15（韓國庫存）
顯示價格為 EX-WORKS（國貿條規 2020）韓國首爾。運費、關稅及保險由買方承擔。
- Category
- 法蘭軸承座
- Dimensions
- 17x28.4x81mm
Overview
INA PCFTR17-XL Flanged Housing Unit is a ready-to-mount bearing unit combining an insert bearing with a flanged housing. It bolts to machine side frames to support shafts and is well suited to conveyors, fans, and agri-food equipment where installation and replacement speed matter.
A radial insert ball bearing is matched with a cast iron or sheet steel housing. Two-bolt, four-bolt, and round flange styles can be selected according to mounting space and load direction.
Key features
- Easy bolt-on mounting with flanged housing
- Ready-to-fit matched bearing and housing
- Misalignment compensation and sealing protection
- Ideal for side-frame shaft supports
Typical applications
- Conveyor side supports
- Fan and blower frames
- Agricultural and food processing equipment
- Packaging and handling systems
Selection guidance
Verify flange style, bolt pitch, shaft diameter, housing material, seal specification, and relubrication method.
| 符號 | 數值 | 說明 |
|---|---|---|
| A | 20 mm | 外殼高度 |
| A1 | 11 mm | 法蘭厚度 |
| A2 | 10 mm | 滾道間距 |
| H1 | 31 mm | 軸心距 |
| Q | M6 | 潤滑連接螺紋 |
| d3 | 28,4 mm | Outside diameter eccentric locking collar |
| 項目 | 代碼 | 說明 |
|---|---|---|
| 材質 | GG | 灰口鑄鐵 |
| 符號 | 數值 | 說明 |
|---|---|---|
| J | 76,1 mm | 節圓直徑（孔） |
| N | 11,5 mm | 固定孔 |
| n | 3 | 螺孔數量 |
| 符號 | 數值 | 說明 |
|---|---|---|
| Tmin | -20 °C | 最低工作溫度 |
| Tmax | 120 °C | 最高工作溫度 |
| 代碼 | 說明 |
|---|---|
| 1 | 外殼數量 |
| CFTR03 | 外殼 |
| GRAE17-XL-NPP-B | 軸承代號 |
