| 符號 | 數值 | 說明 |
|---|---|---|
| d | 65 mm | 內徑 |
| D | 140 mm | 外徑 |
| B | 48 mm | 寬度 |
| Cr | 310.000 N | 基本額定動負荷（徑向） |
| C0r | 345.000 N | 基本額定靜負荷（徑向） |
| Cur | 55.000 N | 疲勞極限負荷（徑向） |
| nG | 3.200 1/min | 極限轉速 |
| nϑr | 2.180 1/min | 參考轉速 |
| ≈m | 3,44 kg | 重量 |
+82 70-7954-6116
info@kovar.kr
技術支援時間：週一至週五 9:00–18:00（韓國時間）
INA

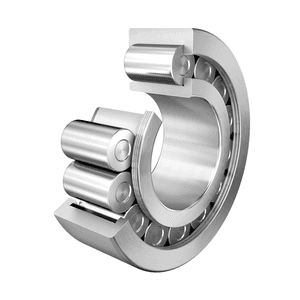

INA SL19-2313 圓柱滾子軸承 65 × 140 × 48 mm
Cylindrical Roller Bearing
NT$7,392.25起
未稅ina:SL19-2313NT$7,392.25
| 規格 | 價格 | 數量 |
|---|---|---|
| ina:SL19-2313 | NT$7,392.25 |
有庫存預計配送日期：2026.06.15（韓國庫存）
顯示價格為 EX-WORKS（國貿條規 2020）韓國首爾。運費、關稅及保險由買方承擔。
- Category
- 圓柱滾子軸承
- Dimensions
- 65x140x48mm
Overview
INA SL19-2313 Cylindrical Roller Bearing is designed for high radial load capacity through line contact between rollers and raceways. It is suitable for rigid, heavy-duty applications such as motors, gearboxes, rolling mills, and machine tools, with N, NU, NJ, and NUP designs offering different axial locating functions.
Cylindrical rollers and a cage are arranged between inner and outer ring raceways. Depending on flange configuration, the bearing can be separable and may support axial load in one or both directions.
Key features
- High radial load capacity
- Rigid performance for high-speed operation
- Separable design for easier mounting
- Axial locating capability by design variant
Typical applications
- Industrial electric motors
- Gearboxes and reducers
- Machine tool spindle support positions
- Rolling mills, paper machines, and heavy machinery
Selection guidance
Choose the N, NU, NJ, or NUP design by load direction, axial locating requirement, cage material, internal clearance, and lubrication condition.
| 符號 | 數值 | 說明 |
|---|---|---|
| D1 | 116,5 mm | 外圈肩徑 |
| Da max | 116,5 mm | 外殼肩最大直徑 |
| d1 | 90 mm | 內圈肩徑 |
| da min | 80,5 mm | 軸肩最小直徑 |
| dc min | 90 mm | 軸肩最小值 |
| F | 80,7 mm | 內圈滾道直徑 |
| ra max | 2,1 mm | 最大圓角半徑 |
| rmin | 2,1 mm | 最小倒角尺寸 |
| s | 3,5 mm | 軸向位移 |
| 項目 | 代碼 | 說明 |
|---|---|---|
| 滾動體列數 | 1 | 單列結構 |
| 符號 | 數值 | 說明 |
|---|---|---|
| Tmin | -30 °C | 最低工作溫度 |
| Tmax | 120 °C | 最高工作溫度 |
- 徑向負荷
- 單向軸向負荷
- 脂潤滑
- 油潤滑
- 無密封
