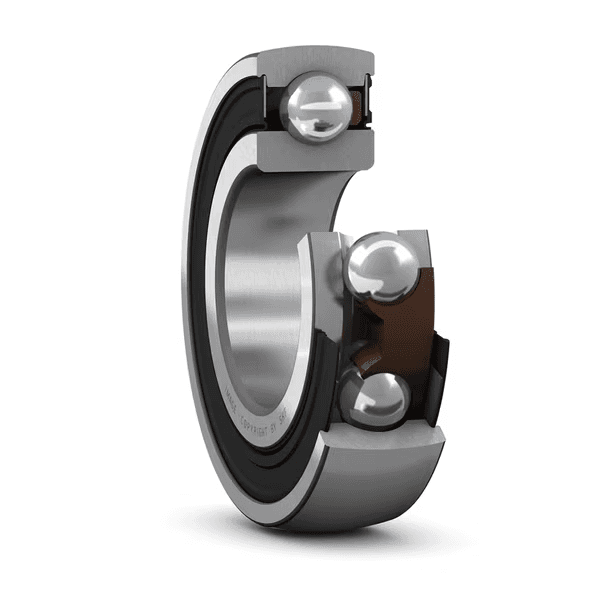

SKF 1726309 -2RS1 徑向插入球軸承 45 × 100 × 25 mm

帶標準內圈的外球面軸承，2RS1 密封

Radial Insert Ball Bearing

詢價

即將補貨 · 諮詢

顯示價格為 EX-WORKS（國貿條規 2020）韓國首爾。運費、關稅及保險由買方承擔。

Category: 徑向插入球軸承
Dimensions: 45x100x25mm

Overview

帶標準內圈的外球面軸承，2RS1 密封

外球面軸承基於帶密封的深溝球軸承。這些外球面軸承適用於以平穩運行為關鍵運行參數的應用。它們可承受比任何其他外球面軸承更高的軸向載荷。軸承兩側密封，由鋼板增強 NBR 製成，安裝在外圈的凹槽中並貼靠內圈擋肩，起接觸式密封的作用。

Key features

運行平穩
可承受較高的軸向載荷
兩側密封

Typical applications

Conveyor rollers
Agricultural and food machinery
Fans and blowers
Packaging and handling equipment

Selection guidance

Check locking method, housing compatibility, seal design, lubrication, contamination level, and load condition.

符號	數值	說明
C	52.7 kN	基本額定動負荷
C0	31.5 kN	基本額定靜負荷
limiting_speed_rpm	4 500 r/min	極限轉速

符號	數值	說明
d	45 mm	軸徑
d	45 mm	內徑
D	100 mm	外徑
T	25 mm	總寬度
B	25 mm	內圈寬度
C	25 mm	外圈寬度

運轉平穩
可承受重軸向負荷
兩側密封

代碼	說明
고정 기능, 내륜	過盈配合
보어 유형	圓柱形
구름 요소	鋼球
외륜 유형	구형
내륜 연장	無（標準環）
케이지	非金屬
고무 시팅 링	無
소재, 베어링	軸承鋼
코팅	無
씰링	兩側密封
씰링 유형	接觸，RS1
윤활유	潤滑脂
재윤활 기능	無
제품 순 중량	0.784 kg
eClass 코드	23-05-08-02
UNSPSC 코드	31171536
