| 符號 | 數值 | 說明 |
|---|---|---|
| C | 1 262 kN | 基本額定動負荷 |
| C0 | 1 860 kN | 基本額定靜負荷 |
| limiting_speed_rpm | 540 r/min | 極限轉速 |
| performance_class | SKF Explorer | SKF性能等級 |
+82 70-7954-6116
info@kovar.kr
技術支援時間：週一至週五 9:00–18:00（韓國時間）
SKF

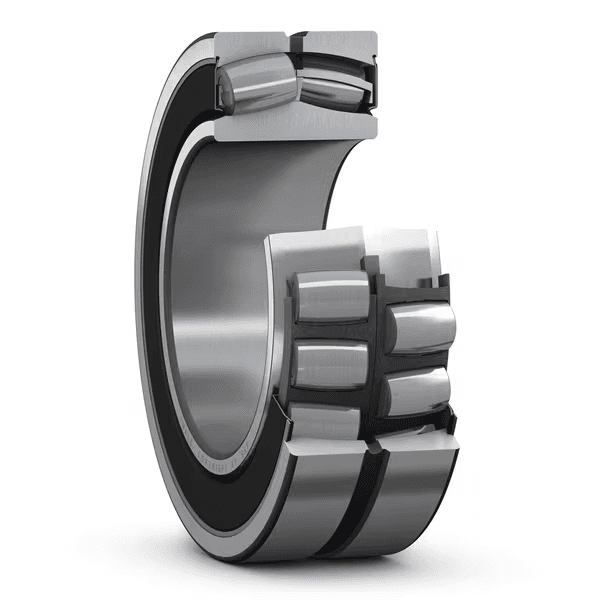

SKF 23044-2CS5K/VT143 調心滾子軸承 220 × 340 × 90 mm
帶錐孔、嵌入式密封與再潤滑功能的球面滾子軸承
Spherical Roller Bearing
詢價
缺貨
顯示價格為 EX-WORKS（國貿條規 2020）韓國首爾。運費、關稅及保險由買方承擔。
- Category
- 調心滾子軸承
- Dimensions
- 220x340x90mm
Overview
帶錐孔、嵌入式密封與再潤滑功能的球面滾子軸承
球面滾子軸承可承受雙向的重載荷。它們具有自動調心功能，可補償不對中與軸撓曲，而摩擦或溫度幾乎不會增加。在正常工況下，帶密封的軸承幾乎免維護，可降低維護成本與潤滑脂消耗。該設計包括錐孔以及便於再潤滑的功能。
Key features
- 補償高達 0.5 度的不對中
- 高承載能力
- 帶密封以提高可靠性，並具有再潤滑功能
- 低摩擦與長使用壽命
- 提高耐磨性
Typical applications
- Conveyor pulleys
- Crushers, screens, and mining equipment
- Steel and paper machinery
- Wind turbines and heavy machinery
Selection guidance
Review load, speed, misalignment, lubrication method, bore type, and adapter sleeve requirements before selection.
| 符號 | 數值 | 說明 |
|---|---|---|
| d | 220 mm | 內徑 |
| D | 340 mm | 外徑 |
| B | 90 mm | 寬度 |
| 符號 | 數值 | 說明 |
|---|---|---|
| da | max. 245 mm | da |
| Da | max. 327 mm | Da |
| ra | max. 2.5 mm | ra |
- Accommodate misalignment up to 0.5 degree
- High load carrying capacity
- Sealed for increased reliability
- with relubrication features
- Low friction and long service life
- Increased wear resistance
| 代碼 | 說明 |
|---|---|
| 열 개수 | 2 |
| 로케이팅 기능, 베어링 외륜 | 無 |
| 보어 유형 | 錐度1:12 |
| 케이지 | 鈑金 |
| 경방향 내부틈새 | CN |
| 치수에 대한 공차 등급 | 標準 |
| 런아웃 공차 등급 | P5 |
| 씰링 | 兩側密封 |
| 씰링 유형 | 接觸式 |
| 윤활유 | 潤滑脂 |
| 재윤활 기능 | 包含 |
| 재제조가능여부 | 是 |
| 제품 순 중량 | 28.3 kg |
| eClass 코드 | 23-05-09-11 |
| UNSPSC 코드 | 31171510 |
