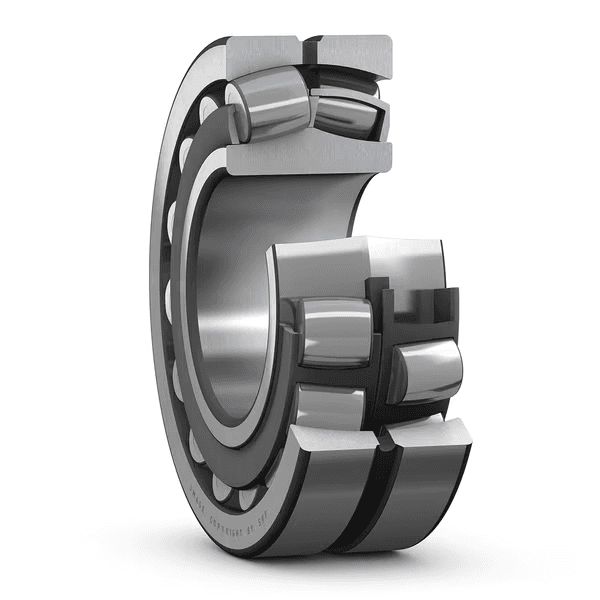

SKF 23968 CC/C3W33 調心滾子軸承 340 × 460 × 90 mm

帶再潤滑功能的球面滾子軸承

Spherical Roller Bearing

詢價

缺貨

顯示價格為 EX-WORKS（國貿條規 2020）韓國首爾。運費、關稅及保險由買方承擔。

Category: 調心滾子軸承
Dimensions: 340x460x90mm

Overview

帶再潤滑功能的球面滾子軸承

球面滾子軸承可承受雙向較大的軸向載荷。這種軸承具有自調心功能，可承受不對中和軸撓曲，而摩擦或溫度幾乎不會上升。設計具有再潤滑的特點。軸承可用於模組化系統中，包括軸承座、套筒和液壓螺母。

Key features

可承受不對中；高承載能力；再潤滑功能；低摩擦和使用壽命長；增加防磨損性能

Typical applications

Conveyor pulleys
Crushers, screens, and mining equipment
Steel and paper machinery
Wind turbines and heavy machinery

Selection guidance

Review load, speed, misalignment, lubrication method, bore type, and adapter sleeve requirements before selection.

符號	數值	說明
C	1 490 kN	基本額定動負荷
C0	2 800 kN	基本額定靜負荷
reference_speed_rpm	1 300 r/min	參考轉速
limiting_speed_rpm	1 400 r/min	極限轉速
performance_class	SKF Explorer	SKF性能等級

符號	數值	說明
d	340 mm	內徑
D	460 mm	外徑
B	90 mm	寬度

補償不對中
高承載能力
再潤滑功能
低摩擦且使用壽命長
提高耐磨性

代碼	說明
열 개수	2
로케이팅 기능, 베어링 외륜	無
보어 유형	圓柱形
케이지	鈑金
경방향 내부틈새	C3
치수에 대한 공차 등급	標準
런아웃 공차 등급	標準
씰링	無
윤활유	無
재윤활 기능	包含
재제조가능여부	是
제품 순 중량	43 kg
eClass 코드	23-05-09-11
UNSPSC 코드	31171510

資料手冊PDF下載

Also searched as

The same part number can be written with or without separators, or in progressive prefix form. We index these common variants so your search reaches this page:
