| 符號 | 數值 | 說明 |
|---|---|---|
| C | 457 kN | 基本額定動負荷 |
| C0 | 670 kN | 基本額定靜負荷 |
| limiting_speed_rpm | 1 000 r/min | 極限轉速 |
| performance_class | SKF Explorer | SKF性能等級 |
+82 70-7954-6116
info@kovar.kr
技術支援時間：週一至週五 9:00–18:00（韓國時間）
SKF

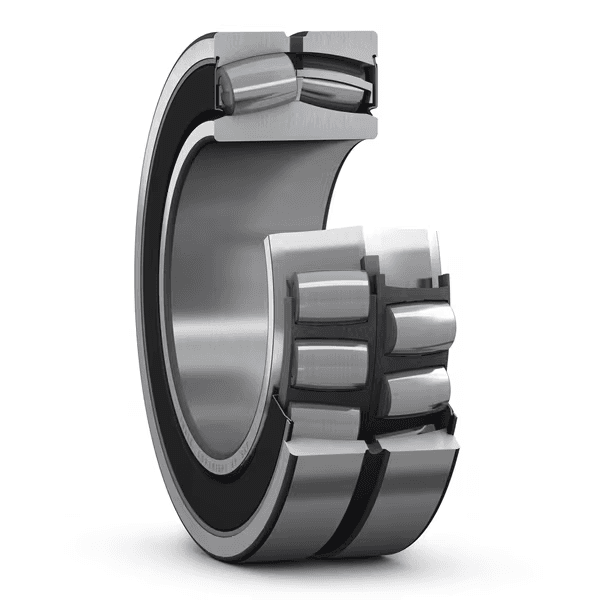

SKF 24024-2CS5/VT143 調心滾子軸承 120 × 180 × 60 mm
帶一體式密封和再潤滑功能的球面滾子軸承
Spherical Roller Bearing
詢價
即將補貨 · 諮詢
顯示價格為 EX-WORKS（國貿條規 2020）韓國首爾。運費、關稅及保險由買方承擔。
- Category
- 調心滾子軸承
- Dimensions
- 120x180x60mm
Overview
帶一體式密封和再潤滑功能的球面滾子軸承
球面滾子軸承可承受雙向較大的軸向載荷。 這種軸承具有自調心功能，可承受不對中和軸撓曲，而摩擦或溫度幾乎不會上升。 在正常工況下，密封軸承幾乎免維護，可降低維修成本和潤滑脂消耗。 設計具有再潤滑的特點。
Key features
- Accommodate misalignment up to 0.5 degree
- High load carrying capacity
- Sealed for increased reliability, with relubrication features
- Low friction and long service life
- Increased wear resistance
Typical applications
- Conveyor pulleys
- Crushers, screens, and mining equipment
- Steel and paper machinery
- Wind turbines and heavy machinery
Selection guidance
Review load, speed, misalignment, lubrication method, bore type, and adapter sleeve requirements before selection.
| 符號 | 數值 | 說明 |
|---|---|---|
| d | 120 mm | 內徑 |
| D | 180 mm | 外徑 |
| B | 60 mm | 寬度 |
| 符號 | 數值 | 說明 |
|---|---|---|
| da | max. 130 mm | da |
| Da | max. 171 mm | Da |
| ra | max. 2 mm | ra |
- Accommodate misalignment up to 0.5 degree
- High load carrying capacity
- Sealed for increased reliability
- with relubrication features
- Low friction and long service life
- Increased wear resistance
| 代碼 | 說明 |
|---|---|
| 열 개수 | 2 |
| 로케이팅 기능, 베어링 외륜 | 無 |
| 보어 유형 | 圓柱形 |
| 케이지 | 鈑金 |
| 경방향 내부틈새 | CN |
| 치수에 대한 공차 등급 | 標準 |
| 런아웃 공차 등급 | P5 |
| 씰링 | 兩側密封 |
| 씰링 유형 | 接觸式 |
| 윤활유 | 潤滑脂 |
| 재윤활 기능 | 包含 |
| 재제조가능여부 | 是 |
| 제품 순 중량 | 5.21 kg |
| eClass 코드 | 23-05-09-11 |
| UNSPSC 코드 | 31171510 |
