| 符號 | 數值 | 說明 |
|---|---|---|
| C | 9.56 kN | 基本額定動負荷 |
| C0 | 4.75 kN | 基本額定靜負荷 |
| limiting_speed_rpm | 12 000 r/min | 極限轉速 |
+82 70-7954-6116
info@kovar.kr
技術支援時間：週一至週五 9:00–18:00（韓國時間）
SKF

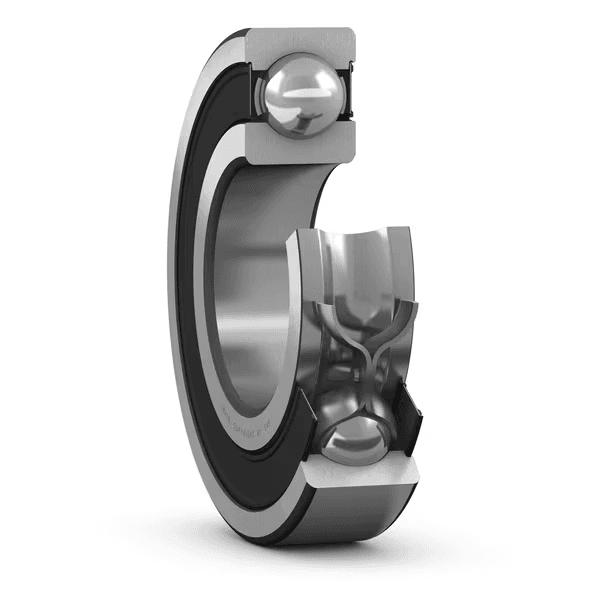

SKF 62203-2RS1/C3 深溝球軸承 17 × 40 × 16 mm
帶密封元件或防塵罩的深溝球軸承
Deep Groove Ball Bearing
詢價
缺貨
顯示價格為 EX-WORKS（國貿條規 2020）韓國首爾。運費、關稅及保險由買方承擔。
- Category
- 深溝球軸承
- Dimensions
- 17x40x16mm
Overview
帶密封元件或防塵罩的深溝球軸承
帶密封元件或防塵罩的單列深溝球軸承使用廣泛、通用性強且有低摩擦，經過最佳化後可降低噪音和振動，進而提高轉速。 可承受徑向載荷和雙向軸向載荷且安裝方便，所需維護比許多其他軸承類型少很多。 一體式密封可明顯延長軸承服務壽命，因為其保留了軸承中的潤滑劑並將污染物排出。
Key features
- 一體式密封可延長軸承的使用壽命；簡單通用和堅固的設計；低摩擦和高速運轉能力；可承受徑向載荷和雙向的軸向載荷；維護量少
Typical applications
- Electric motors and generators
- Pumps, fans, and blowers
- Gearboxes and reducers
- Conveyors and general industrial machinery
Selection guidance
Select by bore, outside diameter, width, sealing type, internal clearance, speed rating, and actual radial/axial load conditions.
| 符號 | 數值 | 說明 |
|---|---|---|
| d | 17 mm | 內徑 |
| D | 40 mm | 外徑 |
| B | 16 mm | 寬度 |
- 一體式密封延長軸承壽命
- 提高耐化學性和耐腐蝕性
- 簡單、多用途且堅固的設計
- 低摩擦
- 高速性能
- 承受雙向徑向和軸向負荷
- 幾乎無需維護
| 代碼 | 說明 |
|---|---|
| 필링 슬롯 | 無 |
| 열 개수 | 1 |
| 로케이팅 기능, 베어링 외륜 | 無 |
| 보어 유형 | 圓柱形 |
| 케이지 | 鈑金 |
| 일치된 배열 | 否 |
| 경방향 내부틈새 | C3 |
| 소재, 베어링 | 軸承鋼 |
| 코팅 | 無 |
| 씰링 | 兩側密封 |
| 씰링 유형 | 接觸式 |
| 윤활유 | 潤滑脂 |
| 재윤활 기능 | 無 |
| 제품 순 중량 | 0.087 kg |
| eClass 코드 | 23-05-08-01 |
| UNSPSC 코드 | 31171504 |
