| 符號 | 數值 | 說明 |
|---|---|---|
| C | 143 kN | 基本額定動負荷 |
| C0 | 134 kN | 基本額定靜負荷 |
| reference_speed_rpm | 4 500 r/min | 參考轉速 |
| limiting_speed_rpm | 6 000 r/min | 極限轉速 |
| performance_class | SKF Explorer | SKF性能等級 |
+82 70-7954-6116
info@kovar.kr
技術支援時間：週一至週五 9:00–18:00（韓國時間）
SKF

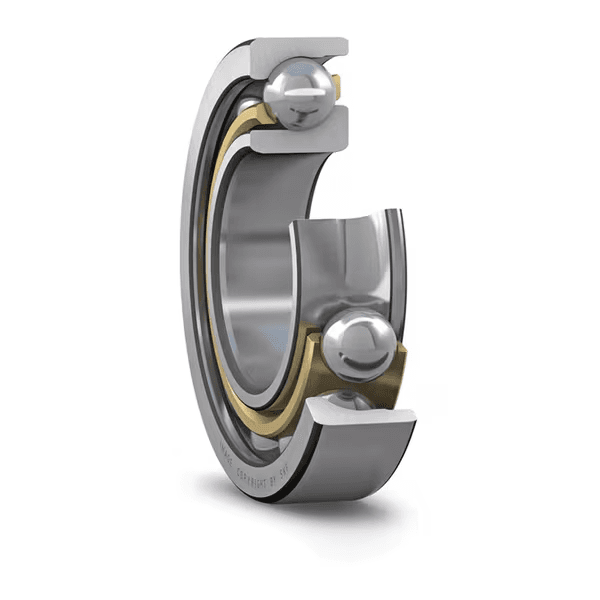

SKF 7220 BEGAM 角接觸球軸承 100 × 180 × 34 mm
單列角接觸球軸承
Angular Contact Ball Bearing
詢價
即將補貨 · 諮詢
顯示價格為 EX-WORKS（國貿條規 2020）韓國首爾。運費、關稅及保險由買方承擔。
- Category
- 角接觸球軸承
- Dimensions
- 100x180x34mm
Overview
單列角接觸球軸承
這些單列角接觸球軸承可承受同時作用的徑向和軸向載荷，而軸向載荷只能作用在一個方向上。 根據不同的型式，這種軸承能在高速，甚至極高轉速下運轉。 比深溝球軸承更能承受單向較大的軸向力。
Key features
- 高速能力；可承受相對較高的徑向載荷和較大的單邊軸向載荷
Typical applications
- Machine tool spindles and support shafts
- Pumps and compressors
- High-speed motors
- Precision gearboxes and robot drives
Selection guidance
Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.
| 符號 | 數值 | 說明 |
|---|---|---|
| d | 100 mm | 內徑 |
| D | 180 mm | 外徑 |
| B | 34 mm | 寬度 |
| α | 40 ° | 接觸角 |
| 符號 | 數值 | 說明 |
|---|---|---|
| da | min. 112 mm | da |
| Da | max. 168 mm | Da |
| Db | max. 173 mm | Db |
| ra | max. 2 mm | ra |
| rb | max. 1 mm | rb |
- 高速性能
- 承受相對較高的徑向負荷及大單向軸向負荷
| 代碼 | 說明 |
|---|---|
| 접촉 유형 | 標準接觸（四點接觸） |
| 열 개수 | 1 |
| 로케이팅 기능, 베어링 외륜 | 無 |
| 링 유형 | 整體式內圈和外圈 |
| 케이지 | 機加工黃銅 |
| 일치된 배열 | 否 |
| 유니버설 매칭 베어링 | 是 |
| 축방향 내부틈새 | Not applicable |
| 일치된 조건(축방향 틈새/예압) | 輕預緊 |
| 공차 클래스 | 클래스 6 (P6) |
| 소재, 베어링 | 軸承鋼 |
| 코팅 | 無 |
| 씰링 | 無 |
| 윤활유 | 無 |
| 재윤활 기능 | 無 |
| 제품 순 중량 | 3.45 kg |
| eClass 코드 | 23-05-08-03 |
| UNSPSC 코드 | 31171531 |
