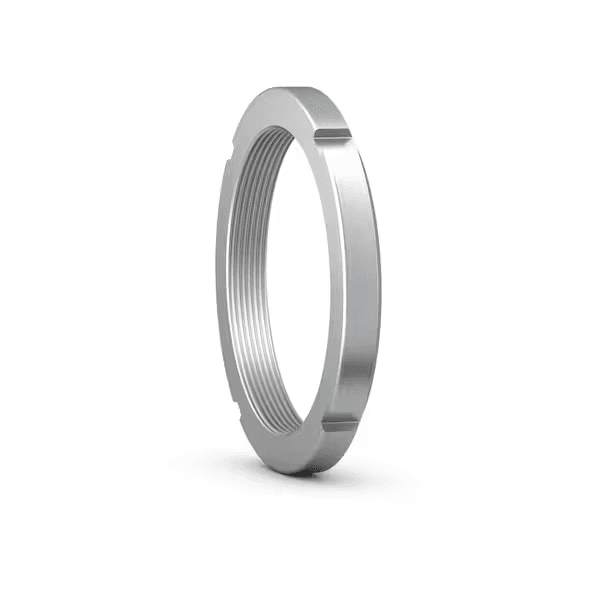

SKF AN 20 99.517 × 131.902 × 19.304 mm

英制螺紋鎖緊螺帽，用於止動墊圈鎖緊

詢價

即將補貨 · 諮詢

顯示價格為 EX-WORKS（國貿條規 2020）韓國首爾。運費、關稅及保險由買方承擔。

Dimensions: 99.517x131.902x19.304mm

Overview

英制螺紋鎖緊螺帽，用於止動墊圈鎖緊

AN 鎖緊螺帽用於將軸承定位在軸上。它們具有英制螺紋與沿圓周均勻分布的四個槽口，以便使用扳手。應使用止動墊圈鎖緊，以防止意外鬆動。AN 鎖緊螺帽在未損壞的情況下可重複使用。

Key features

簡單、穩定且可靠的緊固元件
易於安裝與拆卸
可與新鎖緊裝置搭配重複使用
需要在軸或緊定套螺紋上設置鍵槽

Typical applications

Motors, pumps, and fans
Reducers and industrial gearboxes
Conveyors and handling equipment
General industrial machinery maintenance

Selection guidance

Select by shaft diameter, load direction, speed, mounting space, sealing/lubrication condition, and compatibility with the existing part number.

符號	數值	說明
G	3.918-12	螺紋代號
d	99.517 mm	內徑
D	131.902 mm	外徑
B	19.304 mm	寬度

簡單、穩定、可靠的固定元件
安裝和拆卸方便
配合新鎖緊裝置可重複使用
軸或緊定套螺紋上需要鍵槽

代碼	說明
고정 장치	鎖緊墊圈
유압 장착 너트	否
관련 장착 도구	HN 18-20
제품 순 중량	0.746 kg
eClass 코드	23-11-07-05
UNSPSC 코드	31163218

資料手冊PDF下載
