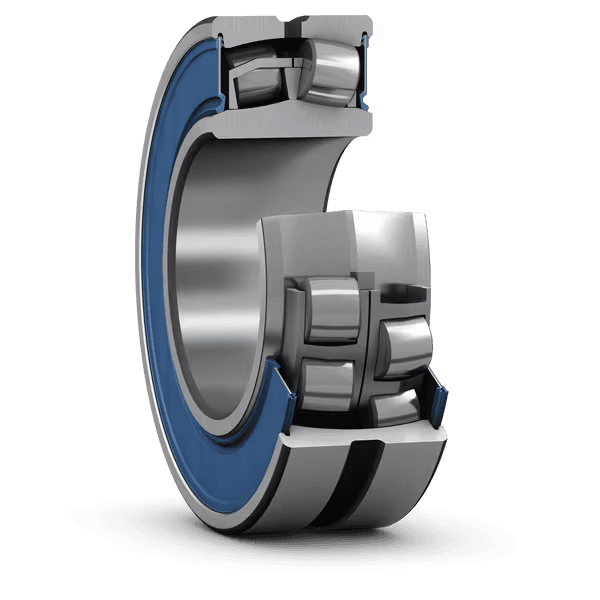

SKF BS2-2209-2RS/GFP9VA944 調心滾子軸承 45 × 85 × 28 mm

SKF Food line 球面滾子軸承

Spherical Roller Bearing

詢價

即將補貨 · 諮詢

顯示價格為 EX-WORKS（國貿條規 2020）韓國首爾。運費、關稅及保險由買方承擔。

Category: 調心滾子軸承
Dimensions: 45x85x28mm

Overview

SKF Food line 球面滾子軸承

SKF Food line 球面滾子軸承符合食品安全法規。採用食品級密封件與潤滑脂設計，可提高食品安全性、增強可靠性，並支持永續發展。球面滾子軸承可承受雙向的重載荷。它們具有自動調心功能，可補償不對中與軸撓曲，而摩擦或溫度幾乎不會增加。

Key features

符合食品安全法規
補償高達 0.5 度的不對中
高承載能力
帶密封以提高可靠性，並具有再潤滑功能
低摩擦與長使用壽命
提高耐磨性

Typical applications

Conveyor pulleys
Crushers, screens, and mining equipment
Steel and paper machinery
Wind turbines and heavy machinery

Selection guidance

Review load, speed, misalignment, lubrication method, bore type, and adapter sleeve requirements before selection.

符號	數值	說明
C	104 kN	基本額定動負荷
C0	100 kN	基本額定靜負荷
limiting_speed_rpm	460 r/min	極限轉速
performance_class	SKF Explorer	SKF性能等級

符號	數值	說明
d	45 mm	內徑
D	85 mm	外徑
B	28 mm	寬度

符號	數值	說明
da	max. 52.5 mm	da
Da	max. 78 mm	Da
ra	max. 1 mm	ra

Compliant with food safety regulations
Accommodate misalignment up to 0.5 degree
High load carrying capacity
Sealed for increased reliability
with relubrication features
Low friction and long service life
Increased wear resistance

代碼	說明
열 개수	2
로케이팅 기능, 베어링 외륜	無
보어 유형	圓柱形
케이지	鈑金
경방향 내부틈새	CN
치수에 대한 공차 등급	標準
런아웃 공차 등급	P5
씰링	兩側密封
씰링 유형	接觸式
윤활유	食品級油
재윤활 기능	包含
제품 순 중량	0.64 kg
eClass 코드	23-05-09-11
UNSPSC 코드	31171510
