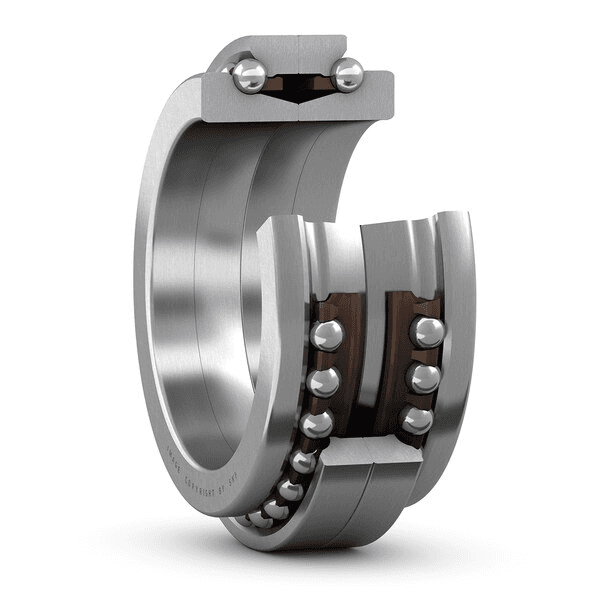

SKF BTW 100 CTN9/SP 推力球軸承 100 × 150 × 60 mm

超精密基本設計雙向角接觸推力球軸承

Thrust Ball Bearing

詢價

即將補貨 · 諮詢

顯示價格為 EX-WORKS（國貿條規 2020）韓國首爾。運費、關稅及保險由買方承擔。

Category: 推力球軸承
Dimensions: 100x150x60mm

Overview

超精密基本設計雙向角接觸推力球軸承

這些雙向角接觸推力球軸承由兩套背對背佈置的單列角接觸推力球軸承組成。它們可承受雙向的高軸向載荷，並提供高度的系統剛性。

Key features

承受雙向軸向載荷
最大系統剛度
可分離

Typical applications

Vertical motors and pumps
Rotary tables
Screw jacks and lifting devices
Low- to medium-speed axial support positions

Selection guidance

Verify axial load direction, speed, washer type, mounting face squareness, and whether any radial load is present.

符號	數值	說明
C	59.2 kN	基本額定動負荷
C0	193 kN	基本額定靜負荷
grease_speed_rpm	5 000 r/min	可達脂潤滑轉速
oil_air_speed_rpm	6 000 r/min	可達油氣潤滑轉速

符號	數值	說明
d	100 mm	內徑
D	150 mm	外徑
H	60 mm	高度
α	60 °	接觸角

符號	數值	說明
da	min. 119 mm	da
Da	max. 142 mm	Da
ra	max. 1.5 mm	ra
rb	max. 0.6 mm	rb

Accommodate axial loads in both directions
Maximum system rigidity
Separable

代碼	說明
축방향 하중 역량	雙向
열 개수	2
로케이팅 기능, 베어링 외륜	無
설계	基本 (BTW系列)
하우징 와셔 타입(복열 앵귤러 콘택트 스러스트 볼 베어링)	兩件式
케이지	非金屬
공차 클래스	SP
소재, 베어링	軸承鋼
코팅	無
씰링	無
윤활유	無
재윤활 기능	無
제품 순 중량	2.97 kg
eClass 코드	23-05-10-02
UNSPSC 코드	31171531

資料手冊PDF下載
