| 符號 | 數值 | 說明 |
|---|---|---|
| C | 102 kN | 基本額定動負荷 |
| C0 | 104 kN | 基本額定靜負荷 |
| limiting_speed_rpm | 4 500 r/min | 極限轉速 |
| performance_class | SKF Explorer | SKF性能等級 |
+82 70-7954-6116
info@kovar.kr
技術支援時間：週一至週五 9:00–18:00（韓國時間）
SKF

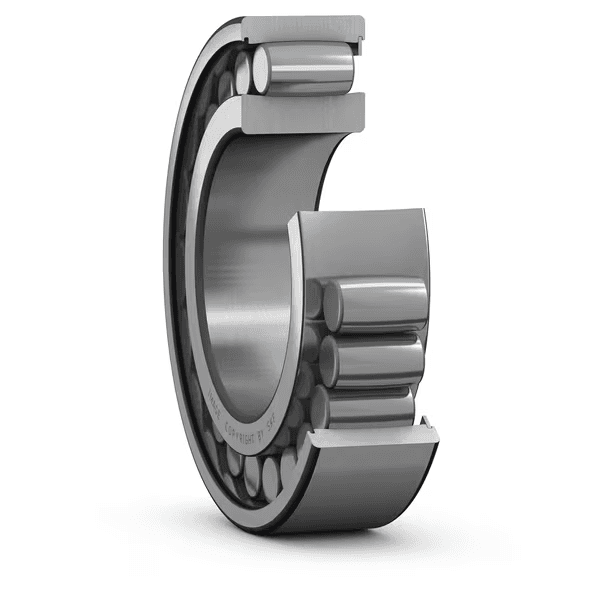

SKF C2208 V 調心球軸承 40 × 80 × 23 mm
滿載 CARB 曲面滾子軸承
Self-Aligning Ball Bearing
詢價
缺貨
顯示價格為 EX-WORKS（國貿條規 2020）韓國首爾。運費、關稅及保險由買方承擔。
- Category
- 調心球軸承
- Dimensions
- 40x80x23mm
Overview
滿載 CARB 曲面滾子軸承
CARB 曲面滾子軸承很獨特：不但可在不增加應力水平的情況下承受不對中，還能在自調心軸承配置中的浮動端，實現軸承內的無摩擦軸向移動。 這種滿載軸承的額定轉速較低，盡量多裝入滾子，使其承受最大的額定載荷。
Key features
- 可承受軸承內的不對中和軸向位移；極高徑向承載能力；實現無摩擦軸向移動；軸承使用壽命長
Typical applications
- Motors, pumps, and fans
- Reducers and industrial gearboxes
- Conveyors and handling equipment
- General industrial machinery maintenance
Selection guidance
Select by shaft diameter, load direction, speed, mounting space, sealing/lubrication condition, and compatibility with the existing part number.
| 符號 | 數值 | 說明 |
|---|---|---|
| d | 40 mm | 內徑 |
| D | 80 mm | 外徑 |
| B | 23 mm | 寬度 |
| 符號 | 數值 | 說明 |
|---|---|---|
| da | max. 66 mm | da |
| Da | max. 73 mm | Da |
| ra | max. 1 mm | ra |
- 補償軸承內不對中及軸向位移
- 極高徑向承載能力
- 提供無摩擦軸向位移
- 軸承系統壽命長
| 代碼 | 說明 |
|---|---|
| 열 개수 | 1 |
| 로케이팅 기능, 베어링 외륜 | 無 |
| 보어 유형 | 圓柱形 |
| 케이지 | 無 |
| 경방향 내부틈새 | CN |
| 공차 클래스 | 標準 |
| 씰링 | 無 |
| 윤활유 | 無 |
| 재윤활 기능 | 無 |
| 제품 순 중량 | 0.511 kg |
| eClass 코드 | 23-05-09-13 |
| UNSPSC 코드 | 31171505 |
