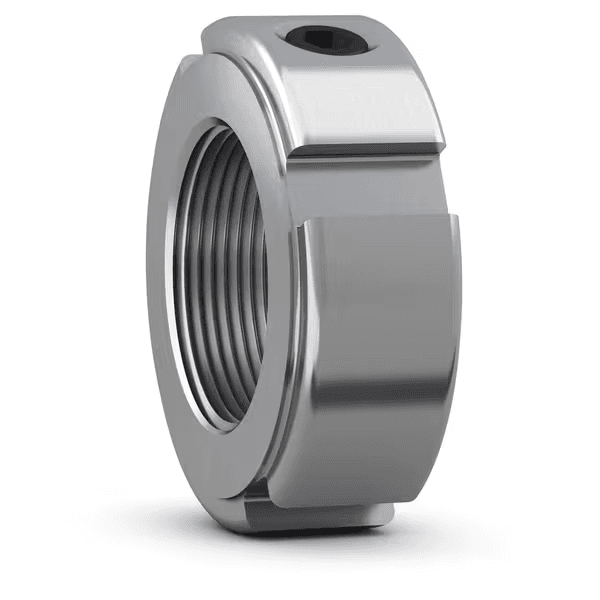

SKF KMF 3 17 × 28 × 9 mm

公制螺紋鎖緊螺帽，帶兩個鎖緊螺釘

詢價

即將補貨 · 諮詢

顯示價格為 EX-WORKS（國貿條規 2020）韓國首爾。運費、關稅及保險由買方承擔。

Dimensions: 17x28x9mm

Overview

公制螺紋鎖緊螺帽，帶兩個鎖緊螺釘

帶整體鎖緊螺釘的 KMF 鎖緊螺帽設計用於將徑向軸承軸向定位在軸上。由於無需鍵槽，可降低軸的成本。使用兩個整體緊定螺釘安裝快速簡便，無需單獨的鎖緊裝置。

Key features

無需鍵槽
針對目標應用的簡單而堅固的鎖緊
可重複使用
經濟高效

Typical applications

Motors, pumps, and fans
Reducers and industrial gearboxes
Conveyors and handling equipment
General industrial machinery maintenance

Selection guidance

Select by shaft diameter, load direction, speed, mounting space, sealing/lubrication condition, and compatibility with the existing part number.

符號	數值	說明
G	M17x1	螺紋代號
d	17 mm	內徑
D	28 mm	外徑
B	9 mm	寬度

No keyway required
Simple and robust locking for intended applications
Reusable
Cost-effective

代碼	說明
고정 장치	已反映在鎖緊螺母中
유압 장착 너트	否
관련 장착 도구	HN 2-3
제품 순 중량	0.026 kg
eClass 코드	23-11-07-05
UNSPSC 코드	31163218

資料手冊PDF下載
