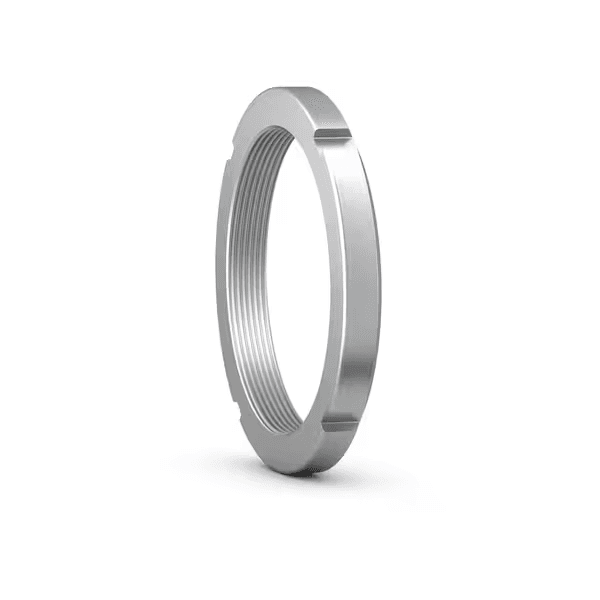

SKF N 11 54.788 × 75.54 × 12.954 mm

帶英制螺紋的鎖緊螺母，用於透過鎖定墊圈或鎖定板鎖緊

詢價

即將補貨 · 諮詢

顯示價格為 EX-WORKS（國貿條規 2020）韓國首爾。運費、關稅及保險由買方承擔。

Dimensions: 54.788x75.54x12.954mm

Overview

帶英制螺紋的鎖緊螺母，用於透過鎖定墊圈或鎖定板鎖緊

N 鎖緊螺母用於將軸承鎖定在軸上。其圓週上等距分佈四個英制螺紋槽，方便使用扳手鎖緊。應以鎖定墊圈或鎖定板鎖緊，以防止意外鬆動。在沒有損壞的情況下，N 鎖緊螺母可重複使用。

Key features

緊固元件簡單、穩定且可靠；方便安裝和拆卸；可使用新的鎖定裝置重複使用；軸或緊定套中需要鎖眼

Typical applications

Motors, pumps, and fans
Reducers and industrial gearboxes
Conveyors and handling equipment
General industrial machinery maintenance

Selection guidance

Select by shaft diameter, load direction, speed, mounting space, sealing/lubrication condition, and compatibility with the existing part number.

符號	數值	說明
G	2.157-18	螺紋代號
d	54.788 mm	內徑
D	75.54 mm	外徑
B	12.954 mm	寬度

簡單、穩定、可靠的固定元件
安裝和拆卸方便
與新鎖緊裝置一起可重複使用
軸或緊定套上需要鍵槽

代碼	說明
고정 장치	鎖緊墊圈
유압 장착 너트	否
관련 장착 도구	HN 10-11
제품 순 중량	0.188 kg
eClass 코드	23-11-07-05
UNSPSC 코드	31163218

資料手冊PDF下載
