| 符號 | 數值 | 說明 |
|---|---|---|
| C | 285 kN | 基本額定動負荷 |
| C0 | 305 kN | 基本額定靜負荷 |
| reference_speed_rpm | 4 000 r/min | 參考轉速 |
| limiting_speed_rpm | 4 500 r/min | 極限轉速 |
| performance_class | SKF Explorer | SKF性能等級 |
+82 70-7954-6116
info@kovar.kr
技術支援時間：週一至週五 9:00–18:00（韓國時間）
SKF

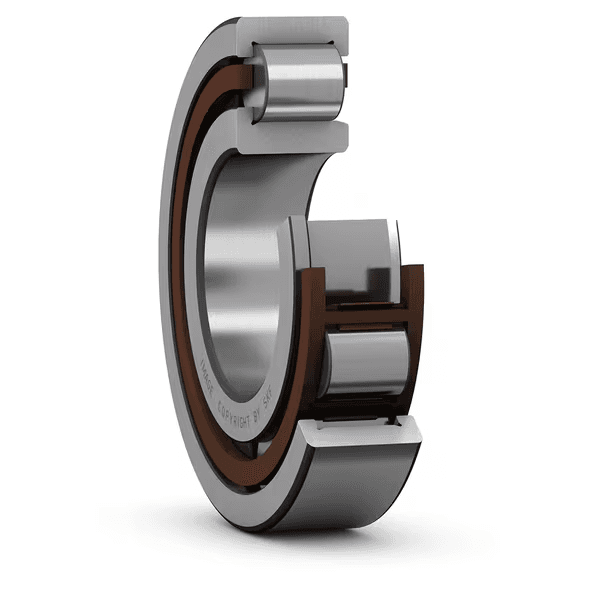

SKF NJ 220 ECP/C3 圓柱滾子軸承 100 × 180 × 34 mm
單列圓柱滾子軸承，NJ 設計
Cylindrical Roller Bearing
詢價
即將補貨 · 諮詢
顯示價格為 EX-WORKS（國貿條規 2020）韓國首爾。運費、關稅及保險由買方承擔。
- Category
- 圓柱滾子軸承
- Dimensions
- 100x180x34mm
Overview
單列圓柱滾子軸承，NJ 設計
單列圓柱滾子軸承設計用於承受高徑向載荷並同時實現高轉速。NJ 設計軸承外圈有兩個整體擋邊、內圈有一個擋邊，可承受單方向的軸向位移。一個重要特點是可分離設計，便於安裝並允許軸承部件互換。
Key features
- 高徑向承載能力
- 低摩擦
- 使用壽命長
- 單方向軸向定位軸
- 可分離設計
Typical applications
- Industrial electric motors
- Gearboxes and reducers
- Machine tool spindle support positions
- Rolling mills, paper machines, and heavy machinery
Selection guidance
Choose the N, NU, NJ, or NUP design by load direction, axial locating requirement, cage material, internal clearance, and lubrication condition.
| 符號 | 數值 | 說明 |
|---|---|---|
| d | 100 mm | 內徑 |
| D | 180 mm | 外徑 |
| B | 34 mm | 寬度 |
- 高徑向承載能力
- 低摩擦
- 使用壽命長
- 單向軸向定位軸
- 可分離設計
| 代碼 | 說明 |
|---|---|
| 베어링 부품 | 整套軸承 |
| 축방향 변위 역량 | 單向 |
| 열 개수 | 1 |
| 로케이팅 기능, 베어링 외륜 | 無 |
| 보어 유형 | 圓柱形 |
| 케이지 | 非金屬 |
| 플랜지 개수, 외부 링 | 2 |
| 플랜지 개수, 내부 링 | 1 |
| 루스 플랜지 | 無 |
| 경방향 내부틈새 | C3 |
| 공차 클래스 | 標準 |
| 코팅 | 無 |
| 씰링 | 無 |
| 윤활유 | 無 |
| 재윤활 기능 | 無 |
| 제품 순 중량 | 3.44 kg |
| eClass 코드 | 23-05-09-01 |
| UNSPSC 코드 | 31171505 |
