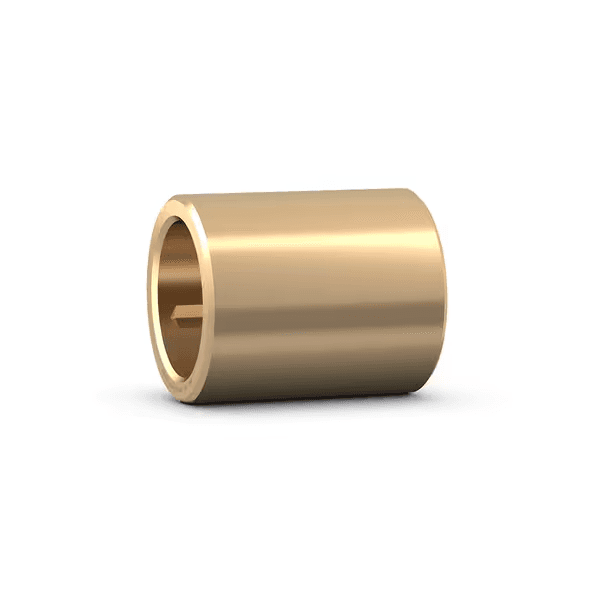

SKF PBM 405060 M1G1 關節軸承 40 × 50 × 60 mm

實心銅直式軸套

Spherical Plain Bearing

詢價

即將補貨 · 諮詢

顯示價格為 EX-WORKS（國貿條規 2020）韓國首爾。運費、關稅及保險由買方承擔。

Category: 關節軸承
Dimensions: 40x50x60mm

Overview

實心銅直式軸套

SKF 實心銅直式（圓柱形）軸套適用於振盪、旋轉和線性移動，可承受徑向載荷。可用於多種工況和嚴峻條件下的設備應用。

Key features

對骯髒環境不敏感；低速時可抵抗衝擊載荷和振動；可在較低光潔度的軸上運轉；良好的耐腐蝕性

Typical applications

Hydraulic cylinder rod ends
Construction machinery linkages
Agricultural joints
Industrial pivot structures

Selection guidance

Check load direction, oscillation angle, relubrication access, sealing need, ring material, and mounting dimensions.

符號	數值	說明
d	40 mm	內徑
D	50 mm	外徑
B	60 mm	寬度

耐受髒污環境
在低速下耐衝擊負荷和振動
即使軸表面品質較低也能工作
良好的耐腐蝕性

代碼	說明
설계	直
재료	實體青銅
재윤활 기능	包含
제품 순 중량	0.373 kg
eClass 코드	23-05-01-90
UNSPSC 코드	31171605

資料手冊PDF下載
