  1. Home
  2. /Bearings
  3. /Bearing Accessories
  4. /FAG KM24 Lock Nut
FAG
FAG KM24 FAG KM24 Lock Nut
  • FAG KM24 FAG KM24 Lock Nut

FAG

FAG KM24 Lock Nut 120 × 155 × 20 mm

Lock Nut

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

FXK03JAGHZ
Category
Lock Nut
Bore
120 mm
Outer Ø
155 mm
Width
20 mm

Overview

FAG KM24: a lock nut measuring 120 × 155 × 20 mm (bore × OD × width).

Looking for the KM24 size from another brand? Options include SKF KM24 (check seal and clearance suffixes).

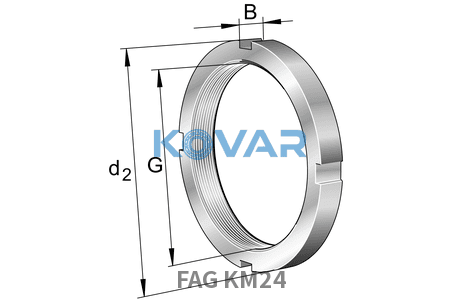

Main Dimensions & Performance

SymbolValueDescription
≈m1.075 kgWeight
GM120x2Thread
d2155 mmd2
d1138 mmd1
F400,000 NF
MB24Fuse

Dimensions

SymbolValueDescription
d120 mmBore diameter
D155 mmOutside diameter
B20 mmWidth

Related Parts

CodeDescription
Standard bearing steelMaterial

Product description

FAG KM24 Lock Nut (Bearing Locknut) is a precision threaded fastener that secures a bearing axially on a shaft or sleeve. Typical KM and AN series nuts clamp the inner ring, are used with adapter and withdrawal sleeves, and combine with a tab (lock) washer to prevent loosening.

The steel nut has a precision metric (or inch) thread and axial slots; the tab of a lock washer is bent into a slot to lock rotation. KM types pair with MB washers, while AN types use a self-locking feature or a separate locking part.

Key features

  • ·Positive axial clamping of bearings on shafts and sleeves
  • ·Secured against loosening by an MB tab washer
  • ·Used to mount adapter and withdrawal sleeves
  • ·Precision thread maintains accurate position and preload

Typical applications

  • ·Self-aligning bearings on adapter sleeves
  • ·Bearing retention on shafts and spindles
  • ·Pump, gearbox, and motor assemblies
  • ·Shaft-end clamping in general rotating machinery

Selection guidance

Check nut designation (e.g., KM 0, AN 08), thread pitch, shaft/thread diameter, matching washer (MB) size, and sleeve type.

Datasheet

📄datasheet pdf download
