  1. Home
  2. /Bearings
  3. /Bearing Accessories
  4. /FAG KM27 Lock Nut
FAG
FAG KM27 FAG KM27 Lock Nut
  • FAG KM27 FAG KM27 Lock Nut

FAG

FAG KM27 Lock Nut 135 × 175 × 22 mm

Lock Nut

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

FXGDA2FFQV
Category
Lock Nut
Bore
135 mm
Outer Ø
175 mm
Width
22 mm

Overview

The FAG KM27 is a lock nut, 135 × 175 × 22 mm (bore × OD × width).

Parts from other brands with the same dimensions as the KM27 include SKF KM27; check that the seal and clearance suffixes match before substituting.

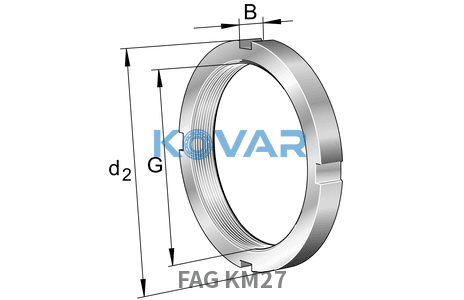

Main Dimensions & Performance

SymbolValueDescription
≈m1.68 kgWeight
GM135x2Thread
d2175 mmd2
d1160 mmd1
F500,000 NF
MB27Fuse

Dimensions

SymbolValueDescription
d135 mmBore diameter
D175 mmOutside diameter
B22 mmWidth

Related Parts

CodeDescription
Standard bearing steelMaterial

Product description

FAG KM27 Lock Nut (Bearing Locknut) is a precision threaded fastener that secures a bearing axially on a shaft or sleeve. Typical KM and AN series nuts clamp the inner ring, are used with adapter and withdrawal sleeves, and combine with a tab (lock) washer to prevent loosening.

The steel nut has a precision metric (or inch) thread and axial slots; the tab of a lock washer is bent into a slot to lock rotation. KM types pair with MB washers, while AN types use a self-locking feature or a separate locking part.

Key features

  • ·Positive axial clamping of bearings on shafts and sleeves
  • ·Secured against loosening by an MB tab washer
  • ·Used to mount adapter and withdrawal sleeves
  • ·Precision thread maintains accurate position and preload

Typical applications

  • ·Self-aligning bearings on adapter sleeves
  • ·Bearing retention on shafts and spindles
  • ·Pump, gearbox, and motor assemblies
  • ·Shaft-end clamping in general rotating machinery

Selection guidance

Check nut designation (e.g., KM 0, AN 08), thread pitch, shaft/thread diameter, matching washer (MB) size, and sleeve type.

Datasheet

📄datasheet pdf download
