  1. Home
  2. /Bearings
  3. /Bearing Accessories
  4. /FAG KML36 Lock Nut
FAG
FAG KML36 FAG KML36 Lock Nut
  • FAG KML36 FAG KML36 Lock Nut

FAG

FAG KML36 Lock Nut 180 × 210 × 27 mm

Lock Nut

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

FXV3A77HX8
Category
Lock Nut
Bore
180 mm
Outer Ø
210 mm
Width
27 mm

Overview

The FAG KML36 is a lock nut, 180 × 210 × 27 mm (bore × OD × width).

Parts from other brands with the same dimensions as the KML36 include SKF KML36; check that the seal and clearance suffixes match before substituting.

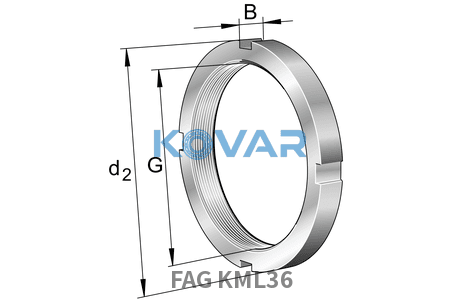

Main Dimensions & Performance

SymbolValueDescription
≈m2.03 kgWeight
GM180x3Thread
d2210 mmd2
d1200 mmd1
F610,000 NF
MBL36Fuse

Dimensions

SymbolValueDescription
d180 mmBore diameter
D210 mmOutside diameter
B27 mmWidth

Related Parts

CodeDescription
Standard bearing steelMaterial

Product description

FAG KML36 Lock Nut (Bearing Locknut) is a precision threaded fastener that secures a bearing axially on a shaft or sleeve. Typical KM and AN series nuts clamp the inner ring, are used with adapter and withdrawal sleeves, and combine with a tab (lock) washer to prevent loosening.

The steel nut has a precision metric (or inch) thread and axial slots; the tab of a lock washer is bent into a slot to lock rotation. KM types pair with MB washers, while AN types use a self-locking feature or a separate locking part.

Key features

  • ·Positive axial clamping of bearings on shafts and sleeves
  • ·Secured against loosening by an MB tab washer
  • ·Used to mount adapter and withdrawal sleeves
  • ·Precision thread maintains accurate position and preload

Typical applications

  • ·Self-aligning bearings on adapter sleeves
  • ·Bearing retention on shafts and spindles
  • ·Pump, gearbox, and motor assemblies
  • ·Shaft-end clamping in general rotating machinery

Selection guidance

Check nut designation (e.g., KM 0, AN 08), thread pitch, shaft/thread diameter, matching washer (MB) size, and sleeve type.

Datasheet

📄datasheet pdf download
