Axial deep groove ball bearing
Thrust Ball Bearing
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

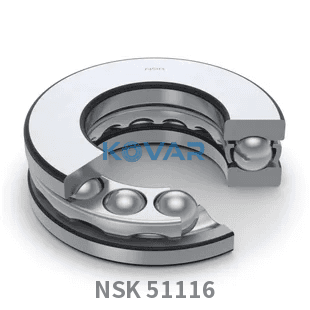

NSK 51116: a plain thrust ball bearing with no suffix measuring 80 × 105 × 19 mm (bore × OD × width).
The same specification comes one size down as 51115 (75 mm bore) and one size up as 51117 (85 mm bore). Looking for the 51116 size from another brand? Options include FAG 51116, KOYO 51116, NTN 51116YP5, SKF 51116 (check seal and clearance suffixes).
| Symbol | Value | Description |
|---|---|---|
| ≈m | 0.417 kg | Weight |
| Cr | 45000 N | Basic dynamic load rating, radial |
| C0r | 141000 N | Basic static load rating, radial |
| Symbol | Value | Description |
|---|---|---|
| d | 80 mm | Bore diameter |
| D | 105 mm | Outside diameter |
| B | 19 mm | Width |
| Code | Description |
|---|---|
| Standard bearing steel | Material |
| Sheet steel cage | Cage |
| Tolerance class P0/PN2 / ABEC 1 | Tolerance class |
NSK 51116 Thrust Ball Bearing is designed specifically to support axial load with a simple, low-friction structure. It is suitable for vertical shafts, rotary tables, jacks, and low- to medium-speed equipment where axial load control is more important than radial load capacity.
The bearing consists of shaft washer, housing washer, and ball-and-cage assembly. Single-direction types support axial load in one direction, while double-direction types support axial load in both directions; they are not intended for radial loading.
Verify axial load direction, speed, washer type, mounting face squareness, and whether any radial load is present.
RFQ
Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.
Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.
Nearby part numbers from the same brand, same product type first — compare seal, clearance and size variants.
