NSK
Axial deep groove ball bearing
Thrust Ball Bearing
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

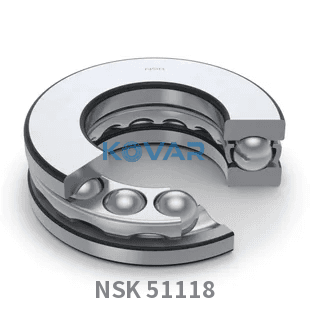

NSK 51118: a plain thrust ball bearing with no suffix measuring 90 × 120 × 22 mm (bore × OD × width).
The same specification comes one size down as 51117 (85 mm bore) and one size up as 51120 (100 mm bore). Looking for the 51118 size from another brand? Options include FAG 51118, KOYO 51118, NTN 51118, SKF 51118 (check seal and clearance suffixes).
| Symbol | Value | Description |
|---|---|---|
| ≈m | 0.646 kg | Weight |
| Cr | 60000 N | Basic dynamic load rating, radial |
| C0r | 190000 N | Basic static load rating, radial |
| Symbol | Value | Description |
|---|---|---|
| d | 90 mm | Bore diameter |
| D | 120 mm | Outside diameter |
| B | 22 mm | Width |
| Code | Description |
|---|---|
| Standard bearing steel | Material |
| Sheet steel cage | Cage |
| Tolerance class P0/PN2 / ABEC 1 | Tolerance class |
NSK 51118 Thrust Ball Bearing is designed specifically to support axial load with a simple, low-friction structure. It is suitable for vertical shafts, rotary tables, jacks, and low- to medium-speed equipment where axial load control is more important than radial load capacity.
The bearing consists of shaft washer, housing washer, and ball-and-cage assembly. Single-direction types support axial load in one direction, while double-direction types support axial load in both directions; they are not intended for radial loading.
Verify axial load direction, speed, washer type, mounting face squareness, and whether any radial load is present.
RFQ
Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.

FAG
51118
Thrust Ball Bearing
US$20.01
Excl. VAT
In stock (70)

KOYO
51118
Thrust Ball Bearing
This product is quote-only — please send an inquiry for pricing and availability.

NTN
51118
Thrust Ball Bearing
This product is quote-only — please send an inquiry for pricing and availability.

SKF
51118
Thrust Ball Bearing
This product is quote-only — please send an inquiry for pricing and availability.

SKF
51118/W64
Thrust Ball Bearing
This product is quote-only — please send an inquiry for pricing and availability.
Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.
