  1. Home
  2. /Bearings
  3. /NSK 6324 Deep Groove Ball Bearing
NSK

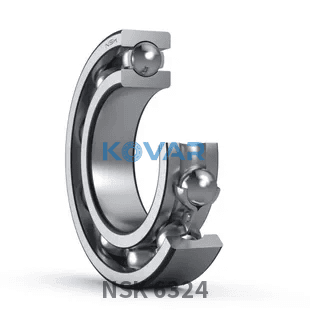

NSK 6324 NSK 6324 Deep Groove Ball Bearing
  • NSK 6324 NSK 6324 Deep Groove Ball Bearing

NSK

NSK 6324 Deep Groove Ball Bearing 120 × 260 × 55 mm

Deep Groove Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

SCPMN7VCSS
Category
Deep Groove Ball Bearing
Bore
120 mm
Outer Ø
260 mm
Width
55 mm

Overview

The NSK 6324 is a plain deep groove ball bearing with no suffix, 120 × 260 × 55 mm (bore × OD × width).

Kovar lists 11 NSK variants in the 120×260×55 mm size; the closest to the 6324 are 6324C3 (internal clearance C3), 6324CM, 6324DDU (contact rubber seals on both sides).

The same specification comes one size down as 6322 (110 mm bore) and one size up as 6326 (130 mm bore). Parts from other brands with the same dimensions as the 6324 include FAG 6324, IBC 6324, KOYO 6324, NTN 6324; check that the seal and clearance suffixes match before substituting.

Main Dimensions & Performance

SymbolValueDescription
≈m12.5 kgWeight
Cr227000 NBasic dynamic load rating, radial
C0r185000 NBasic static load rating, radial
2200 min-1Limiting Speed, Grease
Oil-bath2800 min-1Limiting Speed, Oil
z8Number of balls

Dimensions

SymbolValueDescription
d120 mmBore diameter
D260 mmOutside diameter
B55 mmWidth
r3 mmChamfer Dimension (r)
Dw41.275 mmBall diameter

Product description

NSK 6324 Deep Groove Ball Bearing is a versatile rolling bearing for stable, low-friction rotation in a wide range of industrial equipment. It primarily supports radial load while accommodating moderate axial load in both directions, making it a standard choice for motors, pumps, gearboxes, and general machinery.

The bearing consists of inner and outer rings with deep raceway grooves, balls, and a cage. Open, shielded, or sealed designs can be selected according to contamination, lubrication, and maintenance requirements.

Key features

  • ·Highly versatile standard bearing type
  • ·Low friction and stable high-speed rotation
  • ·Supports radial load and moderate bidirectional axial load
  • ·Available in open, shielded, and sealed designs

Typical applications

  • ·Electric motors and generators
  • ·Pumps, fans, and blowers
  • ·Gearboxes and reducers
  • ·Conveyors and general industrial machinery

Selection guidance

Select by bore, outside diameter, width, sealing type, internal clearance, speed rating, and actual radial/axial load conditions.

Datasheet

📄datasheet pdf download

RFQ

Interchangeable alternatives to NSK 6324

Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.
