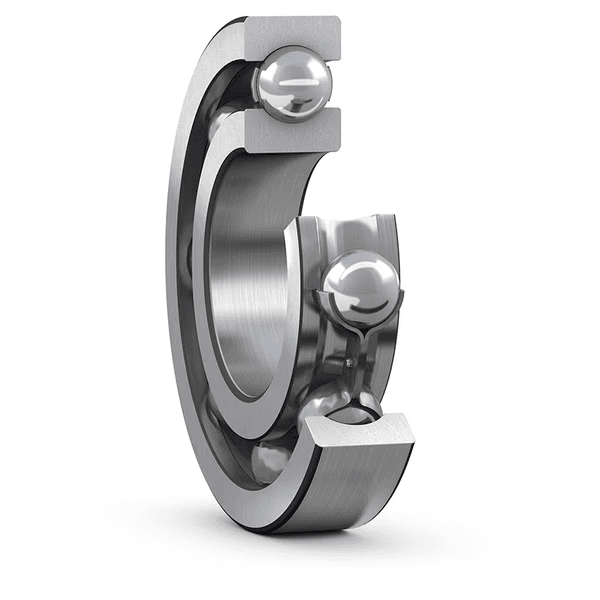

SKF 6324 /C3 Deep Groove Ball Bearing 120 × 260 × 55 mm

Deep Groove Ball Bearing

RFQ

Out of stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Deep Groove Ball Bearing
Dimensions: 120x260x55mm

Overview

Deep groove ball bearing

Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

Key features

Simple, versatile and robust design
Low friction
High-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Typical applications

Electric motors and generators
Pumps, fans, and blowers
Gearboxes and reducers
Conveyors and general industrial machinery

Selection guidance

Select by bore, outside diameter, width, sealing type, internal clearance, speed rating, and actual radial/axial load conditions.

Symbol	Value	Description
C	208 kN	Basic dynamic load rating
C0	186 kN	Basic static load rating
reference_speed_rpm	5 600 r/min	Reference speed
limiting_speed_rpm	3 400 r/min	Limiting speed

Symbol	Value	Description
d	120 mm	Bore diameter
D	260 mm	Outside diameter
B	55 mm	Width

Simple, versatile and robust design
Low friction
High-speed performance
Accommodates radial and axial loads in both directions
Requires almost no maintenance

Code	Description
필링 슬롯	None
열 개수	1
로케이팅 기능, 베어링 외륜	None
보어 유형	Cylindrical
케이지	Sheet metal
일치된 배열	No
경방향 내부틈새	C3
소재, 베어링	Bearing steel
코팅	None
씰링	None
윤활유	None
재윤활 기능	None
제품 순 중량	12.5 kg
eClass 코드	23-05-08-01
UNSPSC 코드	31171504
