SKF
Spherical roller thrust bearing with stamped steel cage
Axial Spherical Roller Bearing
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

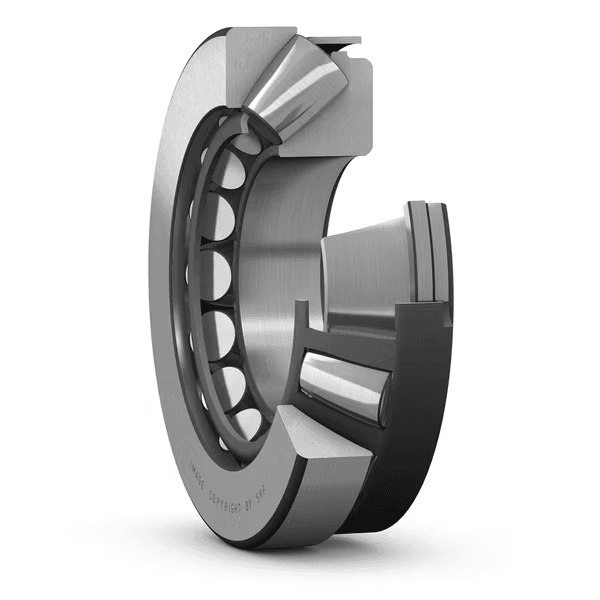

The SKF 29318E is an axial spherical roller bearing, 90 × 155 × 39 mm (bore × OD × width).
Kovar lists 2 SKF variants in the 90×155×39 mm size; the closest to the 29318E are 29318EN1.
Parts from other brands with the same dimensions as the 29318E include FAG 29318, KOYO 29318, NSK 29318, NTN 29318; check that the seal and clearance suffixes match before substituting.
| Symbol | Value | Description |
|---|---|---|
| C | 400 kN | Basic dynamic load rating |
| C0 | 1 080 kN | Basic static load rating |
| nϑr | 2 400 r/min | Reference speed |
| nG | 4 000 r/min | Limiting speed |
| SKF Explorer | SKF performance class | |
| ≈m | 2.9 kg | Weight |
| Symbol | Value | Description |
|---|---|---|
| d | 90 mm | Bore diameter |
| D | 155 mm | Outside diameter |
| H | 39 mm | Height |
| B | 39 mm | Width (B) |
| Symbol | Value | Description |
|---|---|---|
| da | min. 120 mm | da |
| db1 | max. 95 mm | db1 |
| db2 | max. 95 mm | db2 |
| Da | max. 134 mm | Da |
| ra | max. 1.5 mm | ra |
| Code | Description |
|---|---|
| 고정 기능, 하우징 와셔 | None |
| Bore type | Cylindrical |
| Cage | Sheet metal |
| Tolerance class | Normal |
| Net weight | 2.9 kg |
| eClass code | 23-05-11-03 |
| UNSPSC code | 31171507 |
Spherical roller thrust bearing with stamped steel cage
Spherical roller thrust bearings accommodate very heavy axial and considerable radial loads. They have the highest load rating of all thrust bearings, enabling compact, high power density bearing arrangements. By combining two or more spherical roller thrust bearings, it is possible to create a bearing arrangement that is either self-aligning, allowing misalignment of the shaft, or very stiff.
Review axial load, speed, lubrication quantity, cooling, mounting alignment, and minimum load requirements.
