SKF
Spherical roller thrust bearing with stamped steel cage
Axial Spherical Roller Bearing
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

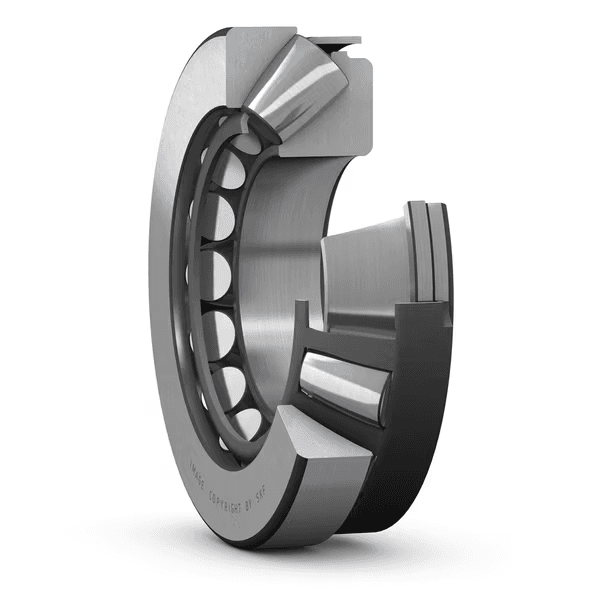

SKF 29324E: an axial spherical roller bearing measuring 120 × 210 × 54 mm (bore × OD × width).
Kovar lists 2 SKF variants in the 120×210×54 mm size; the closest to the 29324E are 29324EN1.
Looking for the 29324E size from another brand? Options include FAG 29324, KOYO 29324, NSK 29324, SLF 29324E (check seal and clearance suffixes).
| Symbol | Value | Description |
|---|---|---|
| C | 765 kN | Basic dynamic load rating |
| C0 | 2 120 kN | Basic static load rating |
| nϑr | 1 700 r/min | Reference speed |
| nG | 2 800 r/min | Limiting speed |
| SKF Explorer | SKF performance class | |
| ≈m | 7.26 kg | Weight |
| Symbol | Value | Description |
|---|---|---|
| d | 120 mm | Bore diameter |
| D | 210 mm | Outside diameter |
| H | 54 mm | Height |
| B | 54 mm | Width (B) |
| Symbol | Value | Description |
|---|---|---|
| da | min. 160 mm | da |
| db1 | max. 128 mm | db1 |
| db2 | max. 128 mm | db2 |
| Da | max. 181 mm | Da |
| ra | max. 2 mm | ra |
| Code | Description |
|---|---|
| 고정 기능, 하우징 와셔 | None |
| Bore type | Cylindrical |
| Cage | Sheet metal |
| Tolerance class | Normal |
| Net weight | 7.26 kg |
| eClass code | 23-05-11-03 |
| UNSPSC code | 31171507 |
Spherical roller thrust bearing with stamped steel cage
Spherical roller thrust bearings accommodate very heavy axial and considerable radial loads. They have the highest load rating of all thrust bearings, enabling compact, high power density bearing arrangements. By combining two or more spherical roller thrust bearings, it is possible to create a bearing arrangement that is either self-aligning, allowing misalignment of the shaft, or very stiff.
Review axial load, speed, lubrication quantity, cooling, mounting alignment, and minimum load requirements.
