SKF
Spherical roller thrust bearing with stamped steel cage
Axial Spherical Roller Bearing
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

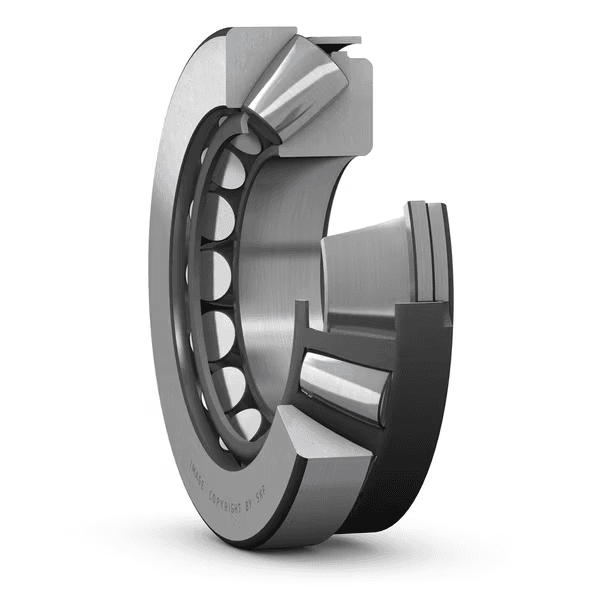

SKF 29414E: an axial spherical roller bearing measuring 70 × 150 × 48 mm (bore × OD × width).
Looking for the 29414E size from another brand? Options include FAG 29414, KOYO 29414, NSK 29414, NTN 29414 (check seal and clearance suffixes).
| Symbol | Value | Description |
|---|---|---|
| C | 520 kN | Basic dynamic load rating |
| C0 | 1 250 kN | Basic static load rating |
| nϑr | 2 400 r/min | Reference speed |
| nG | 4 300 r/min | Limiting speed |
| SKF Explorer | SKF performance class | |
| ≈m | 3.81 kg | Weight |
| Symbol | Value | Description |
|---|---|---|
| d | 70 mm | Bore diameter |
| D | 150 mm | Outside diameter |
| H | 48 mm | Height |
| B | 48 mm | Width (B) |
| Symbol | Value | Description |
|---|---|---|
| da | min. 105 mm | da |
| db1 | max. 77.5 mm | db1 |
| db2 | max. 77.5 mm | db2 |
| Da | max. 125 mm | Da |
| ra | max. 2 mm | ra |
| Code | Description |
|---|---|
| 고정 기능, 하우징 와셔 | None |
| Bore type | Cylindrical |
| Cage | Sheet metal |
| Tolerance class | Normal |
| Net weight | 3.81 kg |
| eClass code | 23-05-11-03 |
| UNSPSC code | 31171507 |
Spherical roller thrust bearing with stamped steel cage
Spherical roller thrust bearings accommodate very heavy axial and considerable radial loads. They have the highest load rating of all thrust bearings, enabling compact, high power density bearing arrangements. By combining two or more spherical roller thrust bearings, it is possible to create a bearing arrangement that is either self-aligning, allowing misalignment of the shaft, or very stiff.
Review axial load, speed, lubrication quantity, cooling, mounting alignment, and minimum load requirements.
RFQ
Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.

FAG
29414-E1-XL
Axial Spherical Roller Bearing
US$187.76
Excl. VAT
In stock (19)

KOYO
29414
Axial Spherical Roller Bearing
This product is quote-only — please send an inquiry for pricing and availability.

NSK
29414
Axial Spherical Roller Bearing
This product is quote-only — please send an inquiry for pricing and availability.

NTN
29414
Spherical Roller Thrust Bearings Axial Spherical Roller Bearing
This product is quote-only — please send an inquiry for pricing and availability.

FAG
29414
Axial Axial Spherical Roller Bearing
This product is quote-only — please send an inquiry for pricing and availability.

KOYO
29414R
Axial Spherical Roller Bearing
This product is quote-only — please send an inquiry for pricing and availability.

NSK
29414M
Axial Spherical Roller Bearing
This product is quote-only — please send an inquiry for pricing and availability.
Nearby part numbers from the same brand, same product type first — compare seal, clearance and size variants.

SKF
29413E
Axial Spherical Roller Bearing
This product is quote-only — please send an inquiry for pricing and availability.

SKF
29415E
Axial Spherical Roller Bearing
This product is quote-only — please send an inquiry for pricing and availability.

SKF
29412E
Axial Axial Spherical Roller Bearing
This product is quote-only — please send an inquiry for pricing and availability.

SKF
29416E
Axial Axial Spherical Roller Bearing
This product is quote-only — please send an inquiry for pricing and availability.

SKF
29380
Axial Spherical Roller Bearing
This product is quote-only — please send an inquiry for pricing and availability.

SKF
29417E
Axial Spherical Roller Bearing
This product is quote-only — please send an inquiry for pricing and availability.

SKF
29376
Axial Spherical Roller Bearing
This product is quote-only — please send an inquiry for pricing and availability.

SKF
29418E
Axial Spherical Roller Bearing
This product is quote-only — please send an inquiry for pricing and availability.
