SKF
Single row tapered roller bearing
Tapered Roller Bearing
RFQ
Estimated delivery: 28 Nov 2026 (domestic stock)
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

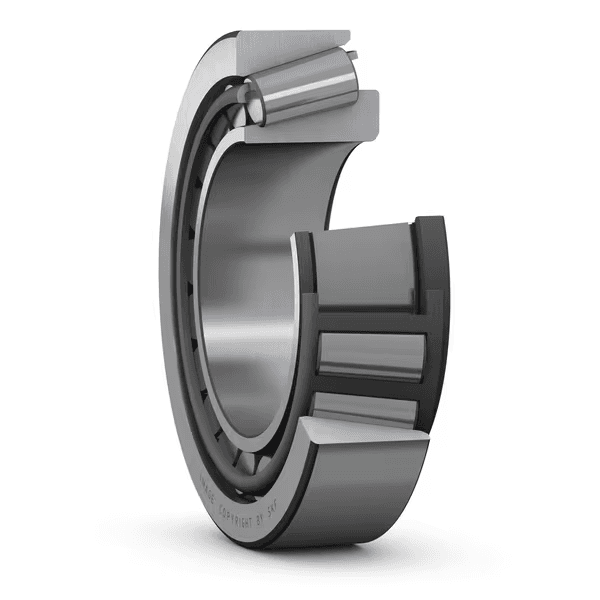

SKF 32230: a plain tapered roller bearing with no suffix measuring 150 × 270 × 77 mm (bore × OD × width).
Kovar lists 2 SKF variants in the 150×270×77 mm size; the closest to the 32230 are 32230/DF = 2 pcs.
The same specification comes one size down as 32228 (140 mm bore) and one size up as 32232 (160 mm bore). Looking for the 32230 size from another brand? Options include FAG 32230-XL-P5, KOYO 32230, NSK 32230J, SLF 32230 (check seal and clearance suffixes).
| Symbol | Value | Description |
|---|---|---|
| nϑr | 1700 r/min | Reference speed |
| nG | 2400 r/min | Limiting speed |
| ≈m | 17.9 kg | Weight |
| α | 16.2 ° | Contact Angle (α) |
| C | 782 kN | Basic Dynamic Load Rating (C) |
| C0 | 1140 kN | Basic Static Load Rating (C0) |
| Symbol | Value | Description |
|---|---|---|
| d | 150 mm | Bore diameter |
| D | 270 mm | Outside diameter |
| B | 77 mm | Width |
| B | 73 mm | Inner Ring Width (B) |
| C | 60 mm | Cup Width (C) |
Single row tapered roller bearing
Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.
Consider load ratio, mounting direction, preload/endplay, lubrication, and the paired bearing arrangement.
RFQ
Estimated delivery: 28 Nov 2026 (domestic stock)
Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.
