SKF
Single row tapered roller bearing
Tapered Roller Bearing
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

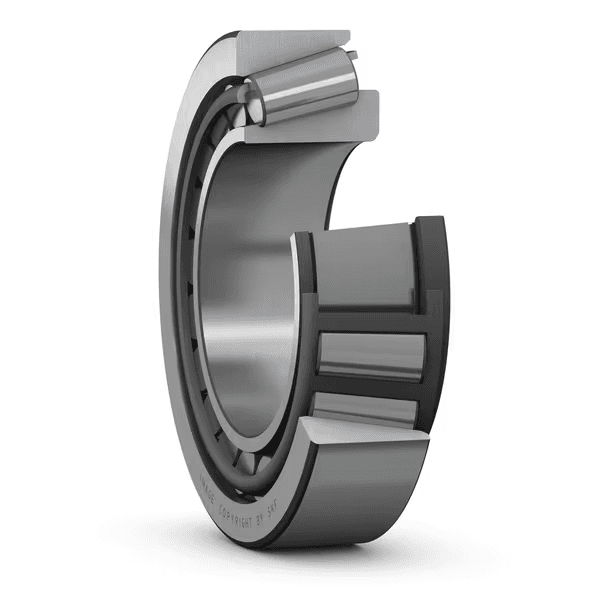

SKF 32234: a plain tapered roller bearing with no suffix measuring 170 × 310 × 91 mm (bore × OD × width).
The same specification comes one size down as 32232 (160 mm bore) and one size up as 32236 (180 mm bore). Looking for the 32234 size from another brand? Options include KOYO 32234, NSK 32234J, SLF 32234 (check seal and clearance suffixes).
| Symbol | Value | Description |
|---|---|---|
| C | 1 075 kN | Basic dynamic load rating |
| C0 | 1 630 kN | Basic static load rating |
| nϑr | 1 500 r/min | Reference speed |
| nG | 2 000 r/min | Limiting speed |
| ≈m | 28.7 kg | Weight |
| Symbol | Value | Description |
|---|---|---|
| d | 170 mm | Bore diameter |
| D | 310 mm | Outside diameter |
| T | 91 mm | Total width |
| B | 86 mm | Inner ring width |
| C | 71 mm | Outer ring width |
| α | 16.2 ° | Contact angle |
| Symbol | Value | Description |
|---|---|---|
| da | max. 196 mm | da |
| db | min. 189.5 mm | db |
| Da | max. 293.5 mm | Da |
| Db | min. 294 mm | Db |
| Ca | min. 10 mm | Ca |
| Cb | min. 20 mm | Cb |
| ra | max. 5 mm | ra |
| rb | max. 4 mm | rb |
| Code | Description |
|---|---|
| Bearing component | Complete bearing |
| Number of rows | 1 |
| Locating feature, bearing outer ring | None |
| Bore type | Cylindrical |
| Cage | Sheet metal |
| Contact angle arrangement (double row bearing) | Not applicable |
| Matched arrangement | No |
| Coating | None |
| Sealing | None |
| Lubricant | None |
| Relubrication feature | None |
| 유닛 시스템 | Metric |
| 재제조가능여부 | Yes |
| Net weight | 28.7 kg |
| eClass code | 23-05-09-10 |
| UNSPSC code | 31171516 |
Single row tapered roller bearing
Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.
Consider load ratio, mounting direction, preload/endplay, lubrication, and the paired bearing arrangement.
