SKF
Single row tapered roller bearing
Tapered Roller Bearing
RFQ
Estimated delivery: 28 Nov 2026 (domestic stock)
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

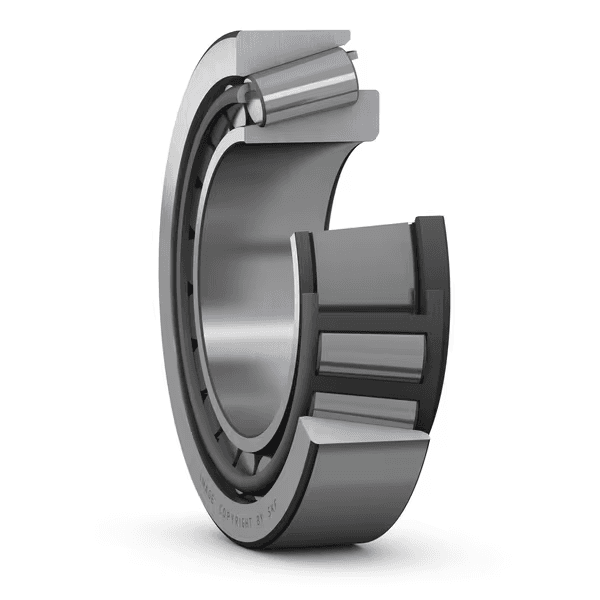

SKF 32236: a plain tapered roller bearing with no suffix measuring 180 × 320 × 91 mm (bore × OD × width).
The same specification comes one size down as 32234 (170 mm bore) and one size up as 32238 (190 mm bore). Looking for the 32236 size from another brand? Options include FAG 32236, KOYO 32236, NSK 32236J, SLF 32236 (check seal and clearance suffixes).
| Symbol | Value | Description |
|---|---|---|
| nϑr | 1400 r/min | Reference speed |
| nG | 1900 r/min | Limiting speed |
| ≈m | 29.5 kg | Weight |
| α | 16.7 ° | Contact Angle (α) |
| C | 1069 kN | Basic Dynamic Load Rating (C) |
| C0 | 1630 kN | Basic Static Load Rating (C0) |
| Symbol | Value | Description |
|---|---|---|
| d | 180 mm | Bore diameter |
| D | 320 mm | Outside diameter |
| B | 91 mm | Width |
| B | 86 mm | Inner Ring Width (B) |
| C | 71 mm | Cup Width (C) |
Single row tapered roller bearing
Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.
Consider load ratio, mounting direction, preload/endplay, lubrication, and the paired bearing arrangement.
