SKF
Single direction thrust ball bearing
Thrust Ball Bearing
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

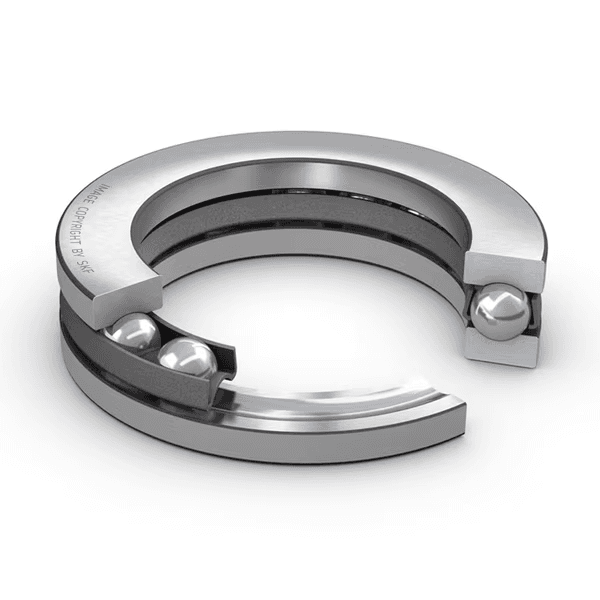

The SKF 51201 is a plain thrust ball bearing with no suffix, 12 × 28 × 11 mm (bore × OD × width).
The same specification comes one size down as 51200 (10 mm bore) and one size up as 51202 (15 mm bore). Parts from other brands with the same dimensions as the 51201 include FAG 51201, KOYO 51201, NSK 51201, NTN 51201; check that the seal and clearance suffixes match before substituting.
| Symbol | Value | Description |
|---|---|---|
| C | 13.3 kN | Basic dynamic load rating |
| C0 | 20.8 kN | Basic static load rating |
| nϑr | 8 000 r/min | Reference speed |
| nG | 11 000 r/min | Limiting speed |
| ≈m | 0.033 kg | Weight |
| Symbol | Value | Description |
|---|---|---|
| d | 12 mm | Bore diameter |
| D | 28 mm | Outside diameter |
| H | 11 mm | Height |
| B | 11 mm | Width (B) |
| Symbol | Value | Description |
|---|---|---|
| da | min. 22 mm | da |
| Da | max. 18 mm | Da |
| ra | max. 0.6 mm | ra |
| Code | Description |
|---|---|
| Axial load capability | Single row |
| Number of rows | 1 |
| Cage | Sheet metal |
| 하우징 와셔 유형 | Flat |
| Tolerance class | Normal |
| Material, bearing | Bearing steel |
| Coating | None |
| Net weight | 0.033 kg |
| eClass code | 23-05-10-01 |
| UNSPSC code | 31171507 |
Single direction thrust ball bearing
Single direction thrust ball bearings can accommodate axial loads in one direction. They must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.
Verify axial load direction, speed, washer type, mounting face squareness, and whether any radial load is present.
RFQ
Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.
