  1. Home
  2. /Bearings
  3. /SKF 51202 Thrust Ball Bearing
SKF
SKF 51202 SKF 51202 Thrust Ball Bearing
  • SKF 51202 SKF 51202 Thrust Ball Bearing

SKF

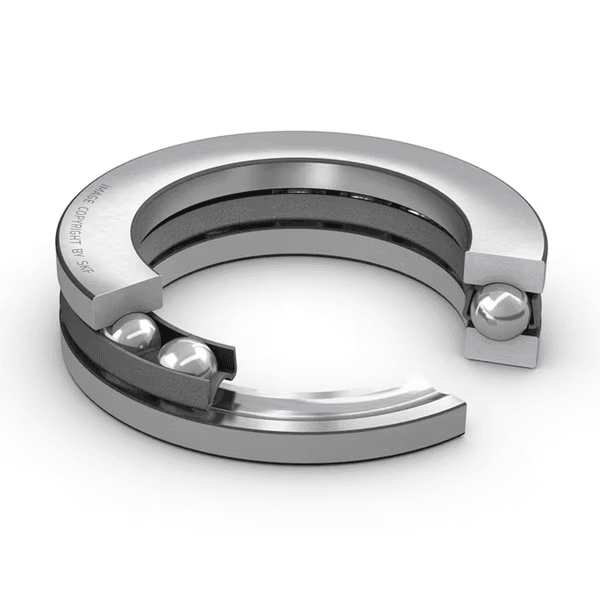

SKF 51202 Thrust Ball Bearing 15 × 32 × 12 mm

Single direction thrust ball bearing

Thrust Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

FXT63FCEKG
Category
Thrust Ball Bearing
Bore
15 mm
Width
12 mm

Overview

SKF 51202: a plain thrust ball bearing with no suffix measuring 15 × 32 × 12 mm (bore × OD × width).

The same specification comes one size down as 51201 (12 mm bore) and one size up as 51203 (17 mm bore). Looking for the 51202 size from another brand? Options include CN 51202, FAG 51202, KOYO 51202, NSK 51202 (check seal and clearance suffixes).

Main Dimensions & Performance

SymbolValueDescription
C15.9 kNBasic dynamic load rating
C025 kNBasic static load rating
nϑr7 000 r/minReference speed
nG10 000 r/minLimiting speed
≈m0.044 kgWeight

Dimensions

SymbolValueDescription
d15 mmBore diameter
D32 mmOutside diameter
H12 mmHeight
B12 mmWidth (B)

Mounting Dimensions

SymbolValueDescription
damin. 25 mmda
Damax. 22 mmDa
ramax. 0.6 mmra

Related Parts

CodeDescription
Axial load capabilitySingle row
Number of rows1
CageSheet metal
하우징 와셔 유형Flat
Tolerance classNormal
Material, bearingBearing steel
CoatingNone
Net weight0.044 kg
eClass code23-05-10-01
UNSPSC code31171507

Characteristics

  • Separable design eases mounting/dismounting and maintenance inspection
  • Components can be replaced
  • Ground bore of shaft washer allows interference fit

Product description

Single direction thrust ball bearing

Single direction thrust ball bearings can accommodate axial loads in one direction. They must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.

Key features

  • ·Separable design facilitates mounting/dismounting and maintenance inspections
  • ·Interchangeable components
  • ·Ground bore of shaft washers enable interference fit

Typical applications

  • ·Vertical motors and pumps
  • ·Rotary tables
  • ·Screw jacks and lifting devices
  • ·Low- to medium-speed axial support positions

Selection guidance

Verify axial load direction, speed, washer type, mounting face squareness, and whether any radial load is present.

Datasheet

📄datasheet pdf download

RFQ

Interchangeable alternatives to SKF 51202

Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.
