  1. Home
  2. /Bearings
  3. /SKF 51220 Thrust Ball Bearing
SKF

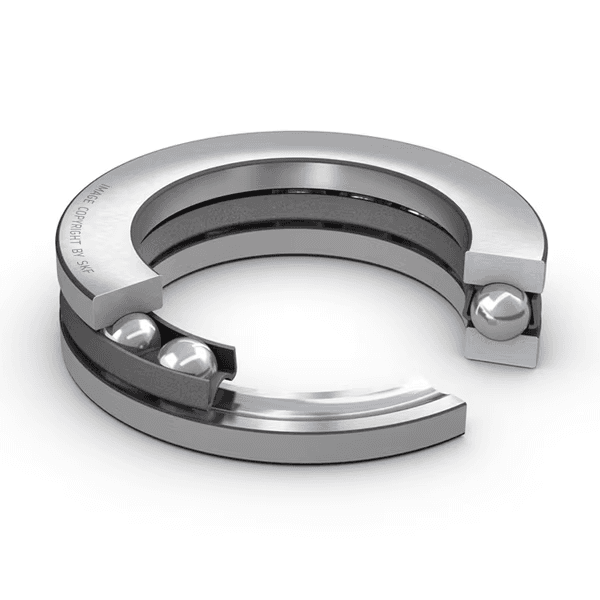

SKF 51220 SKF 51220 Thrust Ball Bearing
  • SKF 51220 SKF 51220 Thrust Ball Bearing

SKF

SKF 51220 Thrust Ball Bearing 100 × 150 × 38 mm

Single direction thrust ball bearing

Thrust Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

FX6B2A1NRS
Category
Thrust Ball Bearing
Bore
100 mm
Width
38 mm

Overview

SKF 51220: a plain thrust ball bearing with no suffix measuring 100 × 150 × 38 mm (bore × OD × width).

The same specification comes one size down as 51218 (90 mm bore) and one size up as 51222 (110 mm bore). Looking for the 51220 size from another brand? Options include FAG 51220, KOYO 51220, NSK 51220, NTN 51220 (check seal and clearance suffixes).

Main Dimensions & Performance

SymbolValueDescription
C119 kNBasic dynamic load rating
C0325 kNBasic static load rating
nϑr1 800 r/minReference speed
nG2 400 r/minLimiting speed
≈m2.14 kgWeight

Dimensions

SymbolValueDescription
d100 mmBore diameter
D150 mmOutside diameter
H38 mmHeight
B38 mmWidth (B)

Mounting Dimensions

SymbolValueDescription
damin. 130 mmda
Damax. 120 mmDa
ramax. 1 mmra

Related Parts

CodeDescription
Axial load capabilitySingle row
Number of rows1
CageSheet metal
하우징 와셔 유형Flat
Tolerance classNormal
Material, bearingBearing steel
CoatingNone
Net weight2.14 kg
eClass code23-05-10-01
UNSPSC code31171507

Characteristics

  • Separable design eases mounting/dismounting and maintenance inspection
  • Components can be replaced
  • Ground bore of shaft washer allows interference fit

Product description

Single direction thrust ball bearing

Single direction thrust ball bearings can accommodate axial loads in one direction. They must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.

Key features

  • ·Separable design facilitates mounting/dismounting and maintenance inspections
  • ·Interchangeable components
  • ·Ground bore of shaft washers enable interference fit

Typical applications

  • ·Vertical motors and pumps
  • ·Rotary tables
  • ·Screw jacks and lifting devices
  • ·Low- to medium-speed axial support positions

Selection guidance

Verify axial load direction, speed, washer type, mounting face squareness, and whether any radial load is present.

Datasheet

📄datasheet pdf download

RFQ

Interchangeable alternatives to SKF 51220

Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.
