SKF
Single direction thrust ball bearing
Thrust Ball Bearing
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

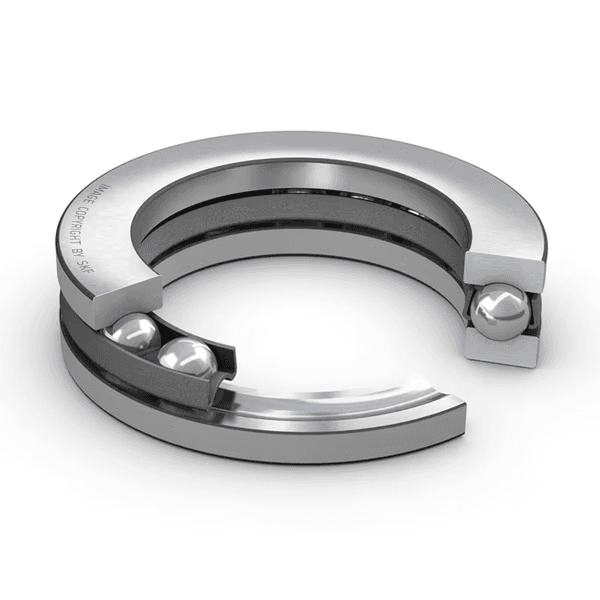

SKF 51222: a plain thrust ball bearing with no suffix measuring 110 × 160 × 38 mm (bore × OD × width).
The same specification comes one size down as 51220 (100 mm bore) and one size up as 51224 (120 mm bore). Looking for the 51222 size from another brand? Options include FAG 51222, KOYO 51222, NSK 51222, NTN 51222 (check seal and clearance suffixes).
| Symbol | Value | Description |
|---|---|---|
| C | 125 kN | Basic dynamic load rating |
| C0 | 365 kN | Basic static load rating |
| nϑr | 1 700 r/min | Reference speed |
| nG | 2 400 r/min | Limiting speed |
| ≈m | 2.35 kg | Weight |
| Symbol | Value | Description |
|---|---|---|
| d | 110 mm | Bore diameter |
| D | 160 mm | Outside diameter |
| H | 38 mm | Height |
| B | 38 mm | Width (B) |
| Symbol | Value | Description |
|---|---|---|
| da | min. 140 mm | da |
| Da | max. 130 mm | Da |
| ra | max. 1 mm | ra |
| Code | Description |
|---|---|
| Axial load capability | Single row |
| Number of rows | 1 |
| Cage | Sheet metal |
| 하우징 와셔 유형 | Flat |
| Tolerance class | Normal |
| Material, bearing | Bearing steel |
| Coating | None |
| Net weight | 2.35 kg |
| eClass code | 23-05-10-01 |
| UNSPSC code | 31171507 |
Single direction thrust ball bearing
Single direction thrust ball bearings can accommodate axial loads in one direction. They must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.
Verify axial load direction, speed, washer type, mounting face squareness, and whether any radial load is present.
RFQ
Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.
