  1. Home
  2. /Bearings
  3. /SKF 52212 Thrust Ball Bearing
SKF

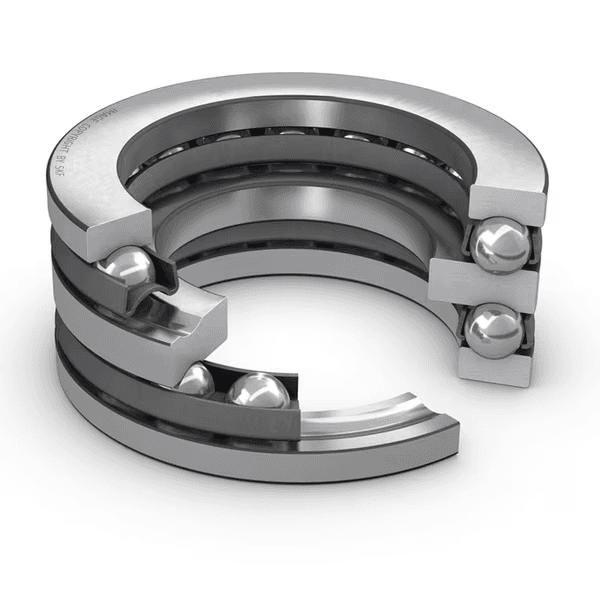

SKF 52212 SKF 52212 Thrust Ball Bearing
  • SKF 52212 SKF 52212 Thrust Ball Bearing

SKF

SKF 52212 Thrust Ball Bearing 50 × 95 × 46 mm

Double direction thrust ball bearing

Thrust Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

FX6HV0QE62
Category
Thrust Ball Bearing
Bore
50 mm

Overview

SKF 52212: a thrust ball bearing measuring bore 50 mm, outside diameter 95 mm.

Kovar lists 2 SKF variants in the 50×95 mm size; the closest to the 52212 are 53310. Limiting speed is 2,800 rpm for the 52212 versus 3,400 rpm for the 53310.

Main Dimensions & Performance

SymbolValueDescription
C59.2 kNBasic dynamic load rating
C0140 kNBasic static load rating
nϑr2 000 r/minReference speed
nG2 800 r/minLimiting speed
≈m1.16 kgWeight

Dimensions

SymbolValueDescription
d50 mmBore diameter
D95 mmOutside diameter
H46 mmHeight

Mounting Dimensions

SymbolValueDescription
da60 mmda
Damax. 74 mmDa
ramax. 1 mmra
rbmax. 0.6 mmrb

Related Parts

CodeDescription
Axial load capabilityBoth directions
Number of rows2
CageSheet metal
하우징 와셔 유형Flat
Tolerance classNormal
Material, bearingBearing steel
CoatingNone
Net weight1.16 kg
eClass code23-05-10-01
UNSPSC code31171507

Characteristics

  • Separable design eases mounting/dismounting and maintenance inspection
  • Components can be replaced
  • Ground bore of shaft washer allows interference fit

Product description

Double direction thrust ball bearing

Double direction thrust ball bearings can accommodate axial loads in both directions, but they must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections, and many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.

Key features

  • ·Separable design facilitates mounting/dismounting and maintenance inspections
  • ·Interchangeable components
  • ·Ground bore of the shaft washers enables interference fits

Typical applications

  • ·Vertical motors and pumps
  • ·Rotary tables
  • ·Screw jacks and lifting devices
  • ·Low- to medium-speed axial support positions

Selection guidance

Verify axial load direction, speed, washer type, mounting face squareness, and whether any radial load is present.

Datasheet

📄datasheet pdf download

RFQ

Same size as SKF 52212, different specification

Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.
