SKF
Double direction thrust ball bearing
Thrust Ball Bearing
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

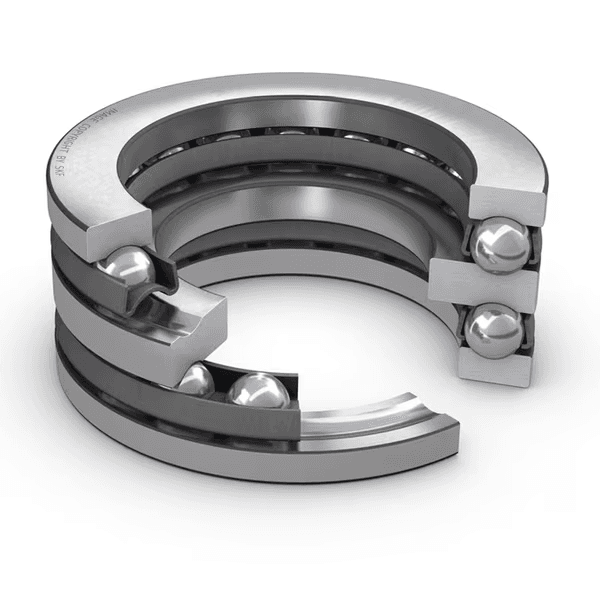

The SKF 52215 is a thrust ball bearing, bore 60 mm, outside diameter 110 mm.
Kovar lists 4 SKF variants in the 60×110 mm size; the closest to the 52215 are 53312, BSA212CGA, BSA212CGB. Limiting speed is 2,600 rpm for the 52215 versus 3,000 rpm for the 53312.
| Symbol | Value | Description |
|---|---|---|
| C | 63.7 kN | Basic dynamic load rating |
| C0 | 170 kN | Basic static load rating |
| nϑr | 1 900 r/min | Reference speed |
| nG | 2 600 r/min | Limiting speed |
| ≈m | 1.49 kg | Weight |
| Symbol | Value | Description |
|---|---|---|
| d | 60 mm | Bore diameter |
| D | 110 mm | Outside diameter |
| H | 47 mm | Height |
| Symbol | Value | Description |
|---|---|---|
| da | 75 mm | da |
| Da | max. 89 mm | Da |
| ra | max. 1 mm | ra |
| rb | max. 1 mm | rb |
| Code | Description |
|---|---|
| Axial load capability | Both directions |
| Number of rows | 2 |
| Cage | Sheet metal |
| 하우징 와셔 유형 | Flat |
| Tolerance class | Normal |
| Material, bearing | Bearing steel |
| Coating | None |
| Net weight | 1.49 kg |
| eClass code | 23-05-10-01 |
| UNSPSC code | 31171507 |
Double direction thrust ball bearing
Double direction thrust ball bearings can accommodate axial loads in both directions, but they must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections, and many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.
Verify axial load direction, speed, washer type, mounting face squareness, and whether any radial load is present.
