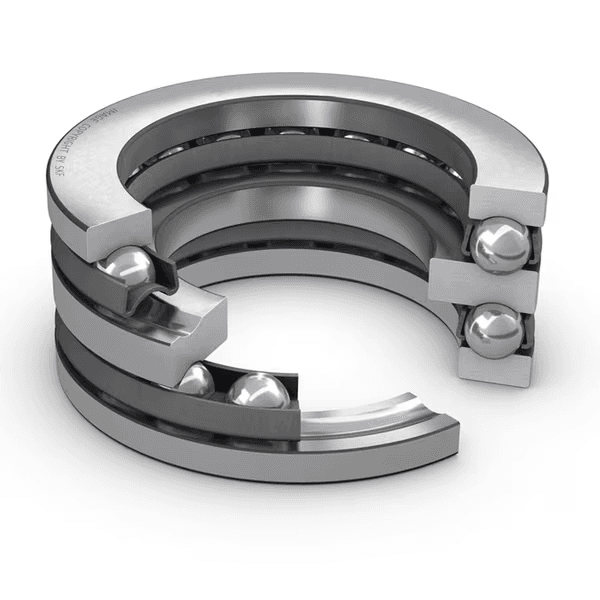

SKF 52320 Thrust Ball Bearing 85 × 170 × 97 mm

Double direction thrust ball bearing

Thrust Ball Bearing

RFQ

Estimated delivery: 10 Jul 2026 (overseas stock, ~4 weeks)

In stockEstimated delivery: 10 Jul 2026 (overseas stock, ~4 weeks)

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Thrust Ball Bearing
Dimensions: 85x170x97mm

Overview

Double direction thrust ball bearing

Double direction thrust ball bearings can accommodate axial loads in both directions, but they must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections, and many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.

Key features

Separable design facilitates mounting/dismounting and maintenance inspections
Interchangeable components
Ground bore of the shaft washers enables interference fits

Typical applications

Vertical motors and pumps
Rotary tables
Screw jacks and lifting devices
Low- to medium-speed axial support positions

Selection guidance

Verify axial load direction, speed, washer type, mounting face squareness, and whether any radial load is present.

Symbol	Value	Description
C	225 kN	Basic dynamic load rating
C0	570 kN	Basic static load rating
reference_speed_rpm	1 000 r/min	Reference speed
limiting_speed_rpm	1 400 r/min	Limiting speed

Symbol	Value	Description
d	85 mm	Bore diameter
D	170 mm	Outside diameter
H	97 mm	Height

Symbol	Value	Description
da	100 mm	da
Da	max. 128 mm	Da
ra	max. 1 mm	ra
rb	max. 1 mm	rb

Separable design eases mounting/dismounting and maintenance inspection
Components can be replaced
Ground bore of shaft washer allows interference fit

Code	Description
축방향 하중 역량	Both directions
열 개수	2
케이지	Sheet metal
하우징 와셔 유형	Flat
공차 클래스	Normal
소재, 베어링	Bearing steel
코팅	None
제품 순 중량	8.6 kg
eClass 코드	23-05-10-01
UNSPSC 코드	31171507
