SKF
Thrust Ball Bearing
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

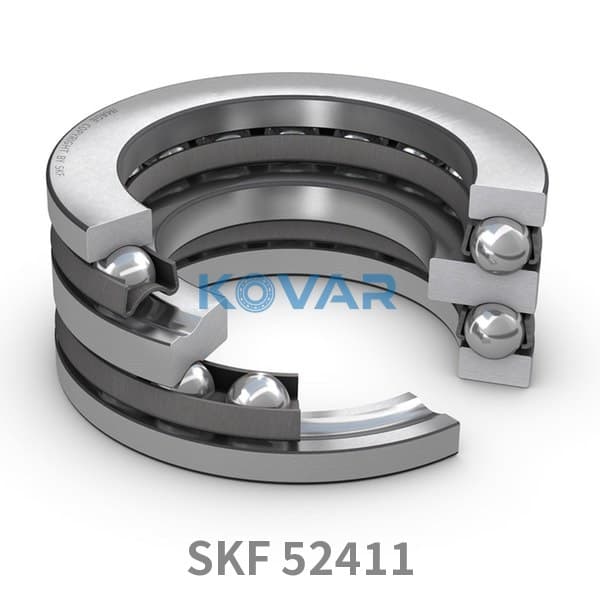

The SKF 52411 is a thrust ball bearing, bore 45 mm, outside diameter 120 mm.
| Symbol | Value | Description |
|---|---|---|
| C | 195 kN | Basic dynamic load rating |
| C0 | 400 kN | Basic static load rating |
| nϑr | 1 300 r/min | Reference speed |
| nG | 1 800 r/min | Limiting speed |
| ≈m | 4.7 kg | Weight |
| Symbol | Value | Description |
|---|---|---|
| d | 45 mm | Bore diameter |
| D | 120 mm | Outside diameter |
| H | 87 mm | Height |
| Symbol | Value | Description |
|---|---|---|
| da | 55 mm | da |
| Da | max. 81 mm | Da |
| ra | max. 1.5 mm | ra |
| rb | max. 0.6 mm | rb |
| Code | Description |
|---|---|
| Axial load capability | Both directions |
| Number of rows | 2 |
| Cage | Sheet metal |
| 하우징 와셔 유형 | Flat |
| Tolerance class | Normal |
| Material, bearing | Bearing steel |
| Coating | None |
| Net weight | 4.7 kg |
| eClass code | 23-05-10-01 |
| UNSPSC code | 31171507 |
Thrust ball bearing
Thrust ball bearings consist of balls and washer-shaped raceway rings and support axial loads only. Single-direction types take axial load in one direction, double-direction types in both; they do not carry radial load. They are used in machine tools, jacks and rotary tables.
Verify axial load direction, speed, washer type, mounting face squareness, and whether any radial load is present.
