  1. Home
  2. /Bearings
  3. /SKF 7232 Angular Contact Ball Bearing
SKF

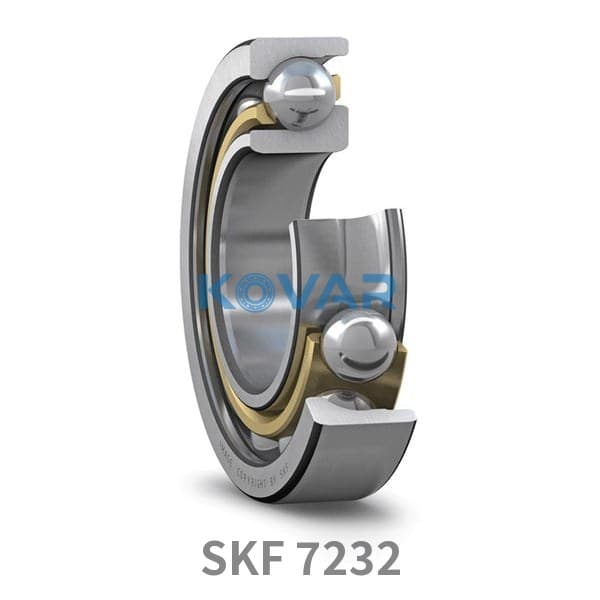

SKF 7232 SKF 7232 Angular Contact Ball Bearing
  • SKF 7232 SKF 7232 Angular Contact Ball Bearing

SKF

SKF 7232 Angular Contact Ball Bearing 160 × 290 × 48 mm

Angular Contact Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

TL7JBT9Y85
Category
Angular Contact Ball Bearing
Bore
160 mm

Overview

SKF 7232: a plain angular contact ball bearing with no suffix measuring 160 × 290 × 48 mm (bore × OD × width).

Kovar lists 2 SKF variants in the 160×290×48 mm size; the closest to the 7232 are 7232BCBM (40° contact angle, Universally matchable, Normal axial internal clearance).

The same specification comes one size down as 7230 (150 mm bore) and one size up as 7234 (170 mm bore). Looking for the 7232 size from another brand? Options include FAG 7232-B-MP, IBC 7232.BE, KOYO 7232, NSK 7232 (check seal and clearance suffixes).

Main Dimensions & Performance

SymbolValueDescription
C255 kNBasic dynamic load rating
C0300 kNBasic static load rating
nϑr2 800 r/minReference speed
nG3 200 r/minLimiting speed
≈m13.3 kgWeight

Dimensions

SymbolValueDescription
d160 mmBore diameter
D290 mmOutside diameter
B48 mmWidth
α40 °Contact angle

Mounting Dimensions

SymbolValueDescription
damin. 174 mmda
Damax. 276 mmDa
Dbmax. 283 mmDb
ramax. 2.5 mmra
rbmax. 1 mmrb

Related Parts

CodeDescription
Contact typeNormal contact (four-point contact)
Number of rows1
Locating feature, bearing outer ringNone
Ring typeOne-piece inner and outer ring
CageMachined brass
Matched arrangementNo
Universally matchable bearingYes
Axial internal clearanceNot applicable
Matched condition (axial clearance / preload)Light preload
Tolerance class클래스 6 (P6)
Material, bearingBearing steel
CoatingNone
SealingNone
LubricantNone
Relubrication featureNone
Net weight13.3 kg
eClass code23-05-08-03
UNSPSC code31171531

Product description

Angular contact ball bearing

Angular contact ball bearings have raceways offset to form a contact angle, accommodating radial loads and axial loads in one direction simultaneously. Mounted in pairs (back-to-back, face-to-face or tandem), they support axial loads in both directions and moment loads. Their high precision and rigidity make them suitable for machine-tool spindles, pumps and gear units.

Key features

  • ·Radial plus single-direction axial load
  • ·Paired arrangements for bidirectional/moment loads
  • ·High precision and rigidity
  • ·Suited to high-speed spindles

Typical applications

  • ·Machine tool spindles and support shafts
  • ·Pumps and compressors
  • ·High-speed motors
  • ·Precision gearboxes and robot drives

Selection guidance

Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.

Datasheet

📄datasheet pdf download

RFQ

Same size as SKF 7232, different specification

Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.

  • FAG
    FAG FAG 7232-B-MP-UO Angular Contact Ball Bearing

    FAG

    7232-B-MP-UO

    Angular Contact Ball Bearing

    US$975.46

    Excl. VAT

    ●

    In stock (1)

  • IBC
    IBC IBC 7232.BE Angular Contact Ball Bearing

    IBC

    7232.BE

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • KOYO
    KOYO KOYO 7232 Angular Contact Ball Bearing

    KOYO

    7232

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NSK
    NSK NSK 7232 Angular Contact Ball Bearing

    NSK

    7232

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NTN
    NTN NTN 7232 Angular Contact Ball Bearing

    NTN

    7232

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 7232BCBM Angular Contact Ball Bearing

    SKF

    7232BCBM

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • FAG
    FAG FAG 7232-B-MP Angular Contact Ball Bearing

    FAG

    7232-B-MP

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • KOYO
    KOYO KOYO 7232FY Angular Contact Ball Bearing

    KOYO

    7232FY

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.
