  1. Home
  2. /Bearings
  3. /SKF 7236 Angular Contact Ball Bearing
SKF

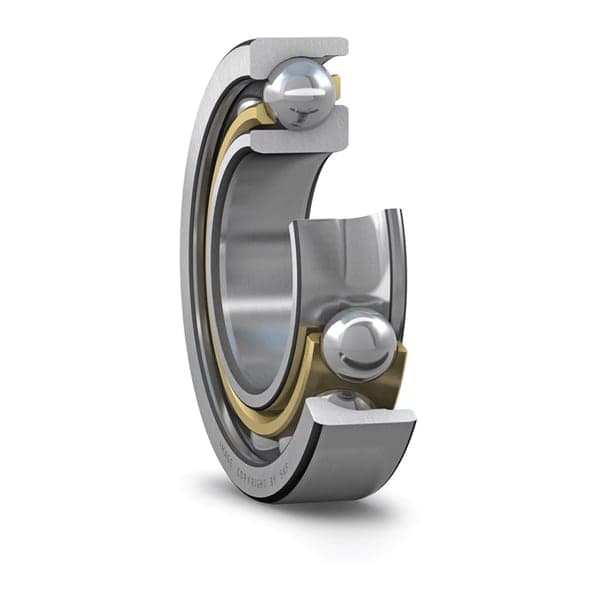

SKF 7236 SKF 7236 Angular Contact Ball Bearing
  • SKF 7236 SKF 7236 Angular Contact Ball Bearing

SKF

SKF 7236 Angular Contact Ball Bearing 180 × 320 × 52 mm

Angular Contact Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

TLF1Q6FXJA
Category
Angular Contact Ball Bearing
Bore
180 mm

Overview

SKF 7236: a plain angular contact ball bearing with no suffix measuring 180 × 320 × 52 mm (bore × OD × width).

Kovar lists 2 SKF variants in the 180×320×52 mm size; the closest to the 7236 are 7236BCBM (40° contact angle, Universally matchable, Normal axial internal clearance).

The same specification also comes in an adjacent size: 7234 (170 mm bore). Looking for the 7236 size from another brand? Options include FAG 7236-B-MP, IBC 7236.BE, NSK 7236A, NTN 7236 (check seal and clearance suffixes).

Main Dimensions & Performance

SymbolValueDescription
C291 kNBasic dynamic load rating
C0375 kNBasic static load rating
nϑr2 400 r/minReference speed
nG2 800 r/minLimiting speed
≈m17.1 kgWeight

Dimensions

SymbolValueDescription
d180 mmBore diameter
D320 mmOutside diameter
B52 mmWidth
α40 °Contact angle

Mounting Dimensions

SymbolValueDescription
damin. 197 mmda
Damax. 303 mmDa
Dbmax. 311 mmDb
ramax. 3 mmra
rbmax. 1.5 mmrb

Related Parts

CodeDescription
Contact typeNormal contact (four-point contact)
Number of rows1
Locating feature, bearing outer ringNone
Ring typeOne-piece inner and outer ring
CageMachined brass
Matched arrangementNo
Universally matchable bearingYes
Axial internal clearanceNot applicable
Matched condition (axial clearance / preload)Axial internal clearance CB
Tolerance class클래스 6 (P6)
Material, bearingBearing steel
CoatingNone
SealingNone
LubricantNone
Relubrication featureNone
Net weight17.1 kg
eClass code23-05-08-03
UNSPSC code31171531

Product description

Angular contact ball bearing

Angular contact ball bearings have raceways offset to form a contact angle, accommodating radial loads and axial loads in one direction simultaneously. Mounted in pairs (back-to-back, face-to-face or tandem), they support axial loads in both directions and moment loads. Their high precision and rigidity make them suitable for machine-tool spindles, pumps and gear units.

Key features

  • ·Radial plus single-direction axial load
  • ·Paired arrangements for bidirectional/moment loads
  • ·High precision and rigidity
  • ·Suited to high-speed spindles

Typical applications

  • ·Machine tool spindles and support shafts
  • ·Pumps and compressors
  • ·High-speed motors
  • ·Precision gearboxes and robot drives

Selection guidance

Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.

Datasheet

📄datasheet pdf download

RFQ

Same size as SKF 7236, different specification

Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.

  • FAG
    FAG FAG 7236-B-MP Angular Contact Ball Bearing

    FAG

    7236-B-MP

    Angular Contact Ball Bearing

    US$1,265.88

    Excl. VAT

    ●

    In stock (1)

  • IBC
    IBC IBC 7236.BE Angular Contact Ball Bearing

    IBC

    7236.BE

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NSK
    NSK NSK 7236A Angular Contact Ball Bearing

    NSK

    7236A

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NTN
    NTN NTN 7236 Angular Contact Ball Bearing

    NTN

    7236

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 7236BCBM Angular Contact Ball Bearing

    SKF

    7236BCBM

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • FAG
    FAG FAG 7236-B-MP-UA Angular Contact Ball Bearing

    FAG

    7236-B-MP-UA

    Angular Contact Ball Bearing

    US$597.66

    Excl. VAT

    ●

    In stock (4)

  • NSK
    NSK NSK 7236AM Angular Contact Ball Bearing

    NSK

    7236AM

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NTN
    NTN NTN 7236B Angular Contact Ball Bearing

    NTN

    7236B

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.
